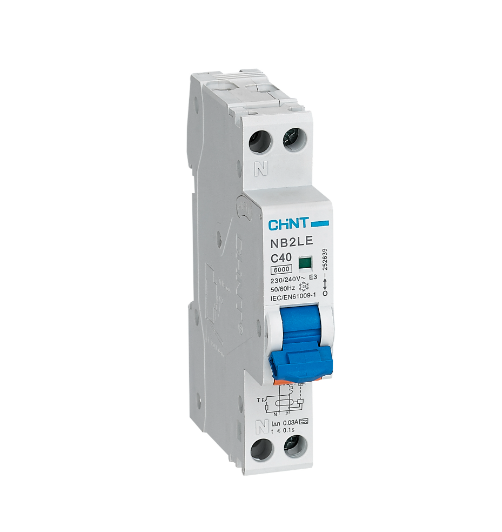

CHINT NB2LE Residual Current Operated Circuit Breaker,
provides combined protection against overload, short-circuit, and residual current faults in AC 230/240 V circuits.
Designe for industrial, commercial, and residential applications, it automatically disconnects the power supply upon leakage or electric shock,
ensuring maximum safety. With 6 kA breaking capacity, multiple tripping curves,
and leakage sensitivities from 30 to 300 mA, the NB2LE is reliable, compact, and compliant with IEC/EN 61009-1 standards.
- Standard: IEC/EN 61009-1
- Rated Voltage (Ue): AC 230/240 V
- Rated Current (In): 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 40 A
- Frame Rated Current (Inm): 40 A
- Poles: 1P + N
- Tripping Characteristics: Type B (3–5 In) / Type C (5–10 In)
- Leakage Current Type: Type AC and Type A
- Rated Residual Operating Current (IΔn): 0.03, 0.1, 0.3 A
- Rated Residual Non-Operating Current (IΔno): 0.015 A
- Rated Short-Circuit Breaking Capacity (Icn): 6,000 A
- Rated Residual Making/Breaking Capacity (IΔm): 3,000 A
- Rated Impulse Withstand Voltage (Uimp): 4,000 V
- Mechanical Life: 20,000 operations
- Electrical Life: 4,000 operations
- Connection: From top or bottom
- Mounting: DIN rail TH35-7.5
- Operating Temperature: −25 °C to +70 °C
- Temperature Compensation Coefficient: 1.27 (at −25 °C) → 0.83 (at +70 °C)
- Protection Features: Residual current, overload, short-circuit, and shock protection
- Applications: Industrial facilities, high-rise buildings, and residential circuits
