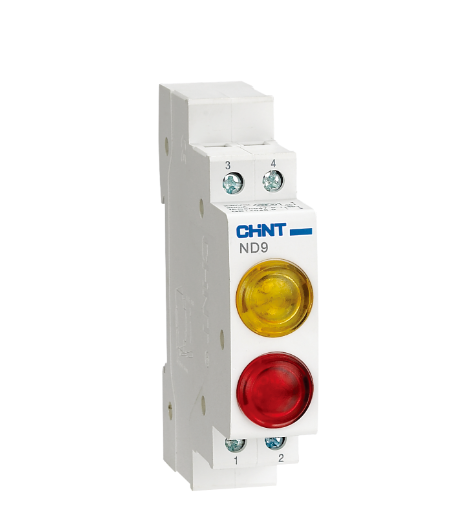

CHINT ND9 Indicator Light,
is a compact and reliable signal light designed for clear circuit indication in control and distribution systems.
It operates at multiple voltages from 6.3V to 230V AC/DC, providing versatile installation options.
Built with a long-life LED (≥30,000h) and rated insulation voltage of 500V,
it ensures stable performance and low power consumption. With IP20 protection, TH35-7.5 rail mounting,
and color-coded indicators (red, green, yellow, blue, white), the ND9 delivers durable and visible status indication across industrial and commercial applications.
- Function: Visual indication for circuit and equipment status
- Rated Voltage Options: AC/DC 6.3V, 12V, 24V, 110V, 230V (50/60Hz)
- Rated Insulation Voltage (Ui): 500V
- Rated Operational Current: ≤20 mA
- Protection Degree: IP20
- Service Life: LED ≥30,000 hours
- Ambient Temperature: −5°C to +40°C (average ≤35°C)
- Altitude: ≤2000m
- Humidity Conditions: ≤50% at +40°C; ≤90% at +20°C
- Mounting Category: II / III
- Pollution Degree: 2
- Mounting Mode: TH35-7.5 standard DIN rail (inclination ≤5°)
- Wiring: 1.0 mm² conductor cross-section; tightening torque 0.8 N·m
- Dimensions (mm): H = 86, W = 18, D = 66.2; mounting holes: 45 ± 0.31 spacing
- Available Colors:
- /B: Blue
- /G: Green
- /R: Red
- /W: White
- /Y: Yellow
- Number of Lights: 1 or 2 (models ND9-1 or ND9-2)
- Standards Compliance: IEC/EN 60947-5-1
