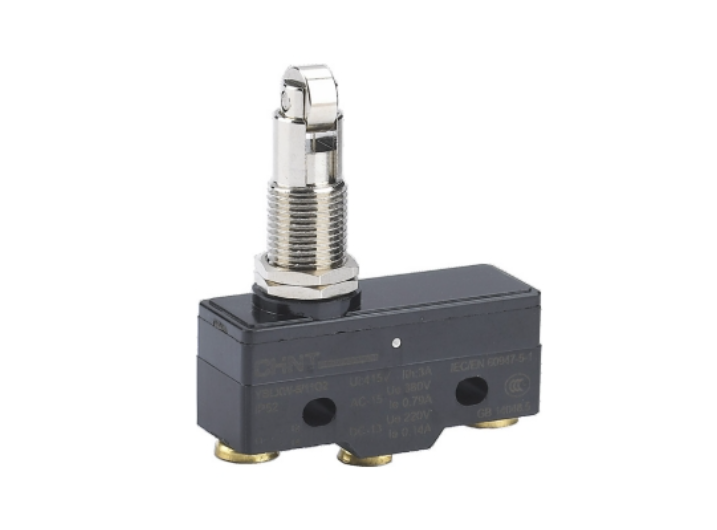

CHINT YBLXW-5 Microswitch,
is a precision-engineered micro-gap switch designe for control and auxiliary circuits in AC and DC applications.
With rated voltages up to 380 V AC and 220 V DC,
it provides reliable mechanical switching performance for travel limit,
interlocking, and position control in machinery, textile, and automation systems.
Built to IEC 60947-5-1 standards, it ensures durability and consistent performance in demanding industrial environments.
- Standards Compliance: GB/T 14048.5, IEC 60947-5-1
- Rated Operating Voltage:
- AC: 380 V (AC-15)
- DC: 220 V (DC-13)
- Rated Operating Current:
- AC-15: 0.79 A
- DC-13: 0.14 A
- Thermal Current (Ith): 5 A
- Insulation Voltage (Ui): 415 V
- Impulse Withstand Voltage (Uimp): 2.5 kV
- Protection Degree: IP52
- Contact Configuration: 1 NO + 1 NC (SPDT type)
- Contact Resistance: ≤ 100 mΩ
- Operating Frequency: 20 operations/min
- Operating Speed: 0.1 – 0.5 mm/s
- Pollution Degree: Class 3
- Installation Category: II
- Ambient Temperature: −5 °C to +40 °C
- Altitude: ≤ 2000 m
- Humidity:
- ≤ 50% at +40 °C
- ≤ 90% at +20 °C (non-condensing)
- Mounting Method: Screw mounting / panel installation
- Housing Material: High-strength plastic and metal components
- Mechanical Durability: Over 1 million operations
- Models and Actuator Types:
- YBLXW-5/11Z – Handspike plunger type
- YBLXW-5/11D1 – Short spring plunger type
- YBLXW-5/11M – Panel mounting plunger type
- YBLXW-5/11Q1, Q2 – Roller plunger (vertical or horizontal)
- YBLXW-5/11N1, N2 – Hinge lever and compression bar types
- YBLXW-5/11G1, G2, G3 – Roller lever and bar types
- YBLXW-5/11G2277 – Double hinge single-direction roller type
- YBLXW-5/11GS – Fine push-rod type
- Movement Force (OF): ≤ 6–10 N (depending on model)
- Movement Route: 1.2–12 mm
- Total Travel: 1.5–13 mm
- Mounting Hole Size: 2 × 5.4 × 4.2 mm
- Applications:
- Travel and limit detection
- Position feedback in automated systems
- Interlocking protection
- Machine and safety control
