Table:
| Graduation | Accuracy | Flange Size | Wire Type | Temperature Range (°C) | Inner Lead Form | Wiring Form |
|---|---|---|---|---|---|---|
| PT100 | T | 30mm | Metal Mesh Shielded Inner Glass Fiber | 400 | Two-Wire | Y-Terminal |
| PT100 | A | 40mm | Hi-Temp Teflon PTFE Wrapping | 350 | Three-Wire | Pin Terminal |
| PT1000 | B | 50mm | Teflon PFA | 260 | Four-Wire | Tail Half Stripping |
| PT1000 | C | 60mm | Silicon Rubber | 180 | – | – |
| PT1000 | – | – | Polyethylene PVC | 105 | – | – |
Text:

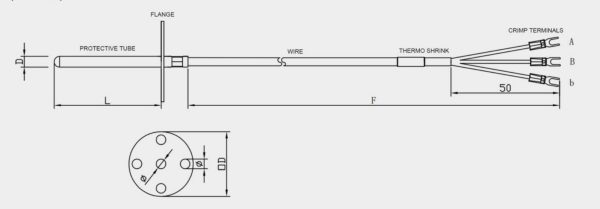

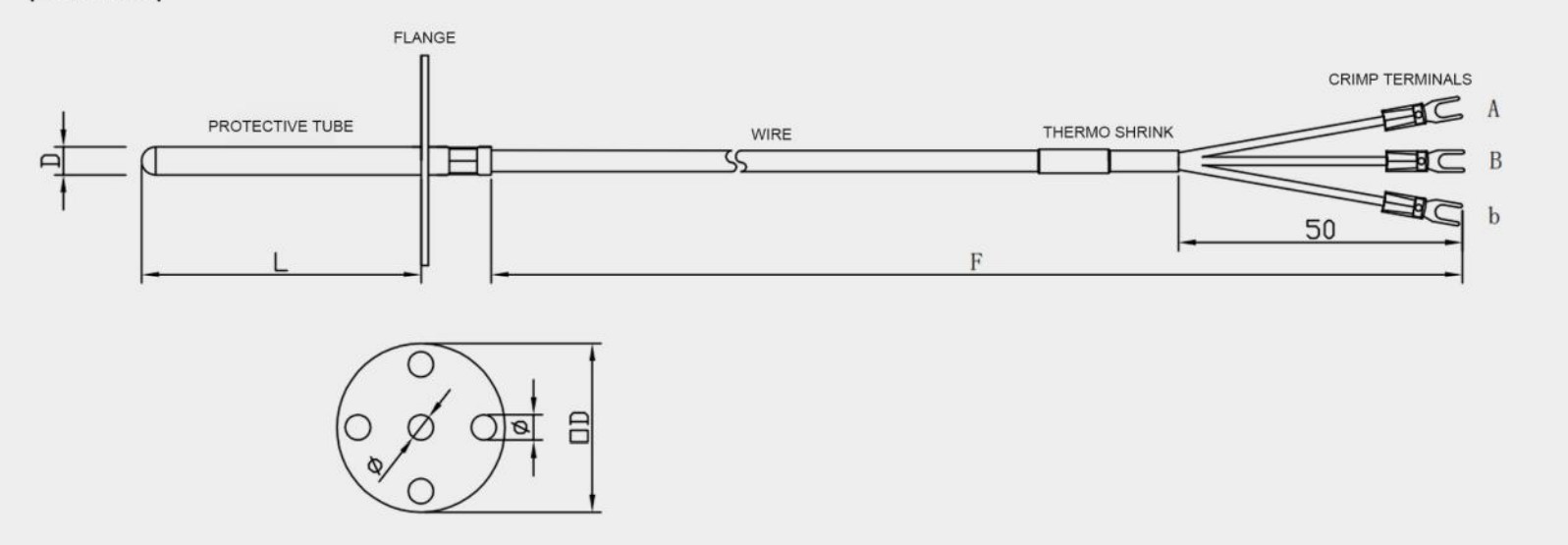

The product includes two graduations: PT100 and PT1000, with varying flange sizes and configurations.
-
PT100 Models:
-
Accuracy T: 30mm flange size, Metal Mesh Shielded Inner Glass Fiber wire (400°C), Two-Wire inner lead form, Y-Terminal wiring.
-
Accuracy A: 40mm flange size, Hi-Temp Teflon PTFE Wrapping (350°C), Three-Wire inner lead form, Pin Terminal wiring.
-
-
PT1000 Models:
-
Accuracy B: 50mm flange size, Teflon PFA wire (260°C), Four-Wire inner lead form, Tail Half Stripping wiring.
-
Accuracy C: 60mm flange size, Silicon Rubber wire (180°C).
-
Additional option: Polyethylene PVC wire (105°C) (flange size not specified).
-
The PT1000 models with Accuracy C and the Polyethylene PVC option do not specify inner lead form or wiring form in the provided data.
