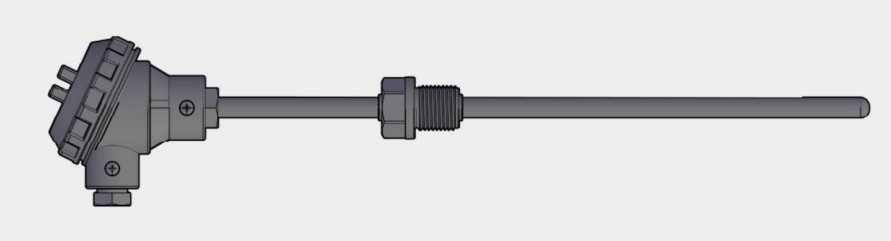

DM-302 Screw Thread Mounted Junction Box Thermocouple

Add to wishlist
Category: Temperature Sensor
Share: Facebook Twitter Tumblr Linkedin Whatsapp

You may also like

  • Siemens QFA3100 Outdoor Air Relative Humidity & Relative Humidity/Temperature Sensor

    Siemens QFA3100 Outdoor Air Relative Humidity & Relative Humidity/Temperature Sensor

  • SMC 10-MGF Low Profile Guide Table Clean Room Series

    SMC 10-MGF Low Profile Guide Table Clean Room Series

  • 2702910 / FL SWITCH 2312-2GC-2SFP Phoenix Contact Managed Switch 2000 series, 12 RJ45 ports 10/100/1000 Mbps, 2 SFP ports 100/1000 Mbps, 2 Combo ports

    2702910 / FL SWITCH 2312-2GC-2SFP Phoenix Contact Managed Switch 2000 series, 12 RJ45 ports 10/100/1000 Mbps, 2 SFP ports 100/1000 Mbps, 2 Combo ports

  • AUTONICS PRCML18-8DP

    AUTONICS PRCML18-8DP

  • SMC SS5Y7-20SA 7000 Series Body Ported Manifold Serial Transmission System Integrated Base

    SMC SS5Y7-20SA 7000 Series Body Ported Manifold Serial Transmission System Integrated Base

  • WEIDMULLER IE-SCRJ1-IP20-POF-100 FO connector 1278420000

    WEIDMULLER IE-SCRJ1-IP20-POF-100 FO connector 1278420000

Description
Shipping & delivery

Table:

Graduation Accuracy Junction Box Specification Junction Box Material Protective Tube OD (mm) Protective Tube Material Thread Size
K I KNC-0 wire entry G1/2″ Cast Aluminum 6.0 SUS304 M27×2.0
N – – – 8.0 – M16×1.5
E – – Bakelite 10.0 SUS316L M12×1.0
J II KSC-0 wire entry G3/8″ Stainless Steel 12.0 SUS310S PT1/2″
T – – – 16.0 – PT1/4″

Text Description:

The product line includes various thermocouple types with the following configurations:

  1. Type K (Class I):

    • Junction Box: KNC-0 with G1/2″ wire entry, cast aluminum

    • Protective Tube: 6.0mm OD, SUS304 stainless steel

    • Thread: M27×2.0 metric

  2. Type N:

    • Protective Tube: 8.0mm OD (material not specified)

    • Thread: M16×1.5 metric

  3. Type E:

    • Junction Box: Bakelite material

    • Protective Tube: 10.0mm OD, SUS316L stainless steel

    • Thread: M12×1.0 metric

  4. Type J (Class II):

    • Junction Box: KSC-0 with G3/8″ wire entry, stainless steel

    • Protective Tube: 12.0mm OD, SUS310S stainless steel

    • Thread: PT1/2″ pipe thread

  5. Type T:

    • Protective Tube: 16.0mm OD (material not specified)

    • Thread: PT1/4″ pipe thread

Key Features:

  • Two accuracy classes specified: Class I (Type K) and Class II (Type J)

  • Progressive protective tube sizes from 6.0mm to 16.0mm OD

  • Mix of metric threads (M27×2.0 to M12×1.0) and pipe threads (PT1/2″, PT1/4″)

  • High-grade stainless steel tubes (SUS304, SUS316L, SUS310S) for certain models

  • Bakelite junction box for Type E provides electrical insulation
