Table:
| Graduation | Accuracy | Junction Box Size | Junction Box Material | Protective Tube OD (mm) | Protective Tube Material | Installation Form |
|---|---|---|---|---|---|---|
| PT100 | 1/3B | KD Wire Screw G1/2″ | Cast aluminum | 3.0 | SUS304 | M16×1.5 |
| PT1000 | A | – | – | 4.0 | – | M12×1.0 |
| PT1000 | B | – | – | 5.0 | – | PT1/2″ |
| PT1000 | – | – | – | 6.0 | – | PT3/8″ |
| PT1000 | – | – | – | 8.0 | – | PT1/4″ |
Text Description:

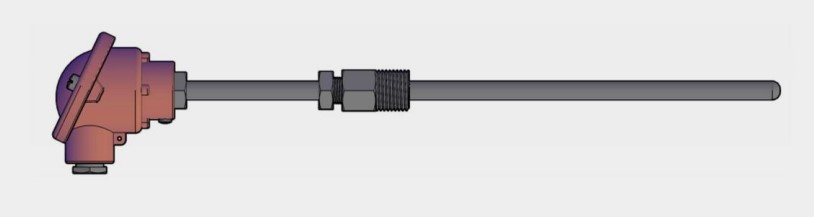

The product line features PT100 and PT1000 temperature sensors with the following specifications:
-
PT100 Model:
-
Accuracy: 1/3B Class
-
Junction Box: KD Wire Screw G1/2″ size, cast aluminum construction
-
Protective Tube: 3.0mm outer diameter, SUS304 stainless steel
-
Installation: M16×1.5 threaded connection
-
-
PT1000 Models:
-
Accuracy A:
-
Protective Tube: 4.0mm OD (material not specified)
-
Installation: M12×1.0 threaded connection
-
-
Accuracy B:
-
Protective Tube: 5.0mm OD
-
Installation: PT1/2″ (pipe thread)
-
-
Additional Options:
-
6.0mm OD with PT3/8″ connection
-
8.0mm OD with PT1/4″ connection
-
-
