Table:
| Graduation | Accuracy | Junction Box Size | Junction Box Material | Protective Tube OD (mm) | Protective Tube Material | Installation Form |
|---|---|---|---|---|---|---|
| PT100 | 1/3B | KD Wire Screw G1/2″ | Cast aluminum | 8.0 | SUS304 | DN10 |
| PT1000 | A | – | – | 12.0 | SUS316L | DN15 |
| PT1000 | B | – | – | 16.0 | – | DN20 |
| PT1000 | – | – | – | 22.0 | – | DN25 |
Text Description:

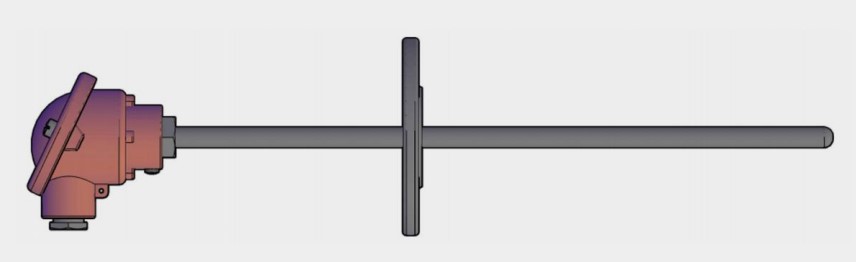

The product line consists of PT100 and PT1000 temperature sensors with the following configurations:
-
PT100 Model:
-
Accuracy: 1/3B
-
Junction Box: KD Wire Screw G1/2″ size, made of cast aluminum
-
Protective Tube: 8.0mm outer diameter, constructed from SUS304 stainless steel
-
Installation: DN10 flange connection
-
-
PT1000 Models:
-
Accuracy A:
-
Protective Tube: 12.0mm OD, SUS316L stainless steel
-
Installation: DN15 flange
-
-
Accuracy B:
-
Protective Tube: 16.0mm OD (material not specified)
-
Installation: DN20 flange
-
-
Additional Option:
-
Protective Tube: 22.0mm OD (material not specified)
-
Installation: DN25 flange
-
-
