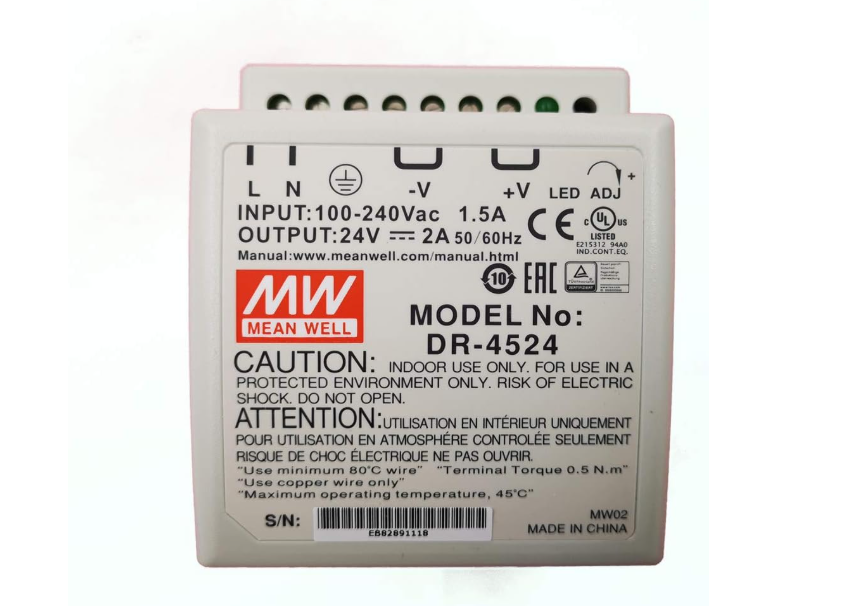

DR-4524 Power Supply – 45W 24V 2A,
Features:
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS35 / 7.5 or 15
UL508 (industrial control equipment) listed
100% full load burn-in test
LED indicator for power on
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:88~264VAC; 124~370VDC
AC inrush current (230VAC):56A
DC adjustment range:±10%
Overload protection:105%~150% constant current limiting, auto-recovery
Over-voltage-protection Range :115%~142% rated output voltage
Over-voltage-protection Type:Shut off, AC recycle to re-start
Over-temp. Protection:Shut down output voltage, recovers automatically after temperature goes down
Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature:-10~+50°C
Safety standards:UL508, TUV EN60950-1 approved
EMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
Connection:I/P: 3 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH):78x93x67
Case No.:918A
Packing:48pcs / 17.5kg
