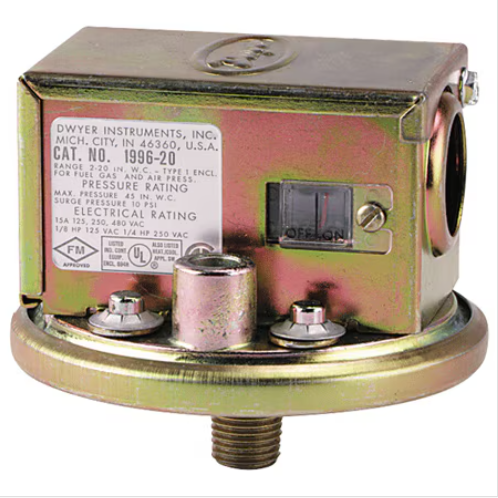

Dwyer Series 1996 Gas Pressure Switch 1996-5,
Reliable and convenient, the Series 1996 Gas Pressure Switch serves as a compact,
low cost switch for gas fired furnaces and equipment. Pressure ranges for both models
are ideal for high or low gas pressure interlock. Visible set point and on-off indicators
add convenience in servicing. Use either NO or NC contacts on SPDT switch. Bottom
connection has both 1/8˝ female and 1/4˝ male threads for pipe nipple or coupling. Top
connection vents diaphragm chamber to outside or to furnace combustion chamber.
Mount switch with diaphragm in a horizontal position and gas pressure connection at
bottom. Used with natural, manufactured or LP gas.uv
