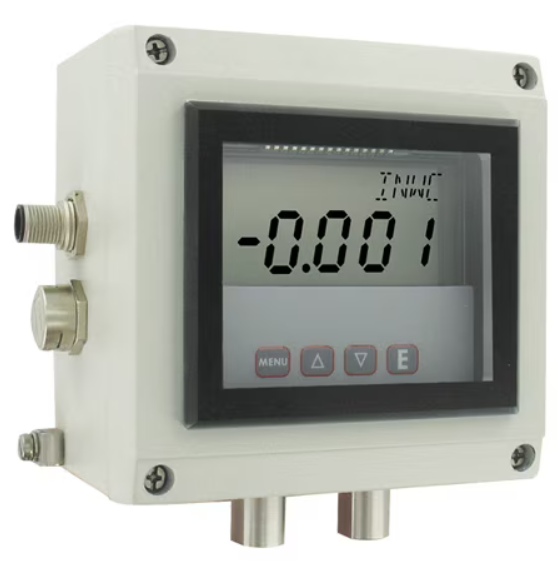

Dwyer Series ISDP Intrinsically Safe Differential Pressure Transmitter

Dwyer Series ISDP Intrinsically Safe Differential Pressure Transmitter,
provides a 4-20 mA process output, a robust NEMA 4X enclosure, plus a large LCD display that
can be programmed to read in pressure, velocity or flow. The ISDP offers simplified
programming via a Menu key that enables the user to select: security level; English
or Metric engineering units; pressure, velocity or flow operation, K-factor for use with
various Pitot tubes and flow sensors, circular or rectangular duct size for volumetric
flow operation plus many more. The Series ISDP Differential Pressure Transmitter
is powered on its two wire loop with 10-35 VDC via its integral M-12 four pin male
connector. The ISDP provides a 0.5% full-scale accuracy on ranges from 0.25 in w.c.
to 100 in w.c. as well as bi-directional models up to 10 in w.c. These features make
the Series ISDP Differential Pressure Transmitter the ideal instrument for monitoring
pressures or air flows in hazardous zones having a Class I Div. I Groups A, B, C, D;
Class II Div. I Groups E, F, G; Class III Div. I ratings.
