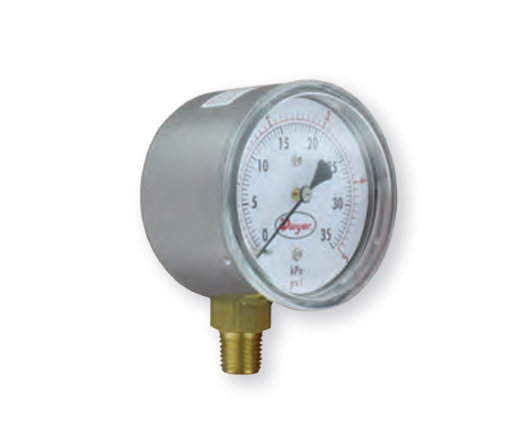

Dwyer Series LPG5 2.5˝ Low Pressure Gage LPG5-D8022N,
offers top of the line performance for
pressure applications from 10 in w.c. to 10 psi. The LPG5 gages possess dual scales
with 3-2-3% full-scale accuracy on a 2.5˝ dial. Units are made with a chrome plated
steel housing and brass wetted parts. Units can withstand temperatures of -4 to 140°F
(-20 to 60°C). This series is meant for the measurement of low pressures of gases and
liquids and is ideal for air flow indication, liquid level and draft measurement. Series
LPG5 gages are available with either a bottom or back connection option.
FEATURES/BENEFITS
• Chrome plated steel housing and brass wetted parts resist ambient for
longer service life in harsh environments
• Low pressure gage provides a selection to meet specific applications
• Specified with high ambient and process temperature ratings mean more
robust uses and longer service-life
• Good accuracy gage for value-sensitive applications requiring more
precise measurement and where vibration is a concern
APPLICATIONS
• Air flow indication
• Liquid level
• Draft measurement
