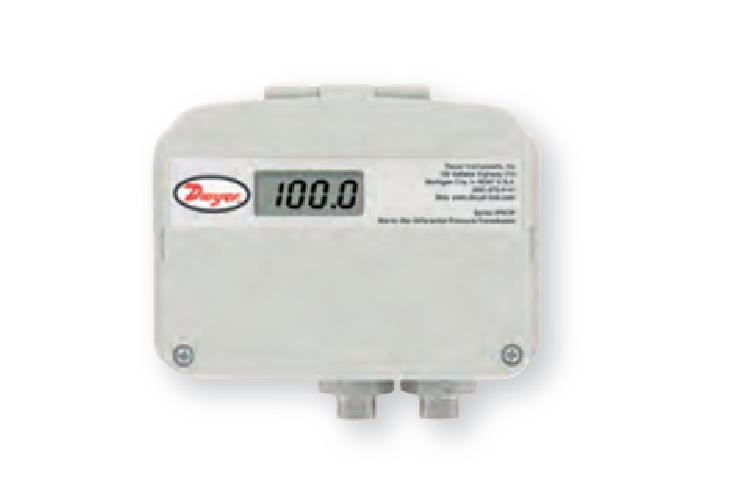

Dwyer Series WWDP Differential Pressure Transmitter WWDP-1

Dwyer Series WWDP Differential Pressure Transmitter WWDP-1,
offers everything in one package by having 30 field selectable variations in just 3 models. The WWDP provides
field selectable unidirectional and bidirectional pressure ranges, configurable 0-5, 1-5,
0-10 VDC, and 4 to 20 mA output. It also provides an auto-zero capability. The field
selectable port swap feature eliminates costly re-plumbing if the unit is improperly
installed or if the transmitter is simply replace. An optional LCD display is available for
on-sight indication of line and differential pressure. The all cast aluminum housing is
rated NEMA 4 (IP66). These features make the WWDP transmitter an ideal instrument
for measuring the flow of various liquids and gases, pressure drop across filters,
measurement of liquid level or pressurized vessels, and for use in energy management
and process control systems.
