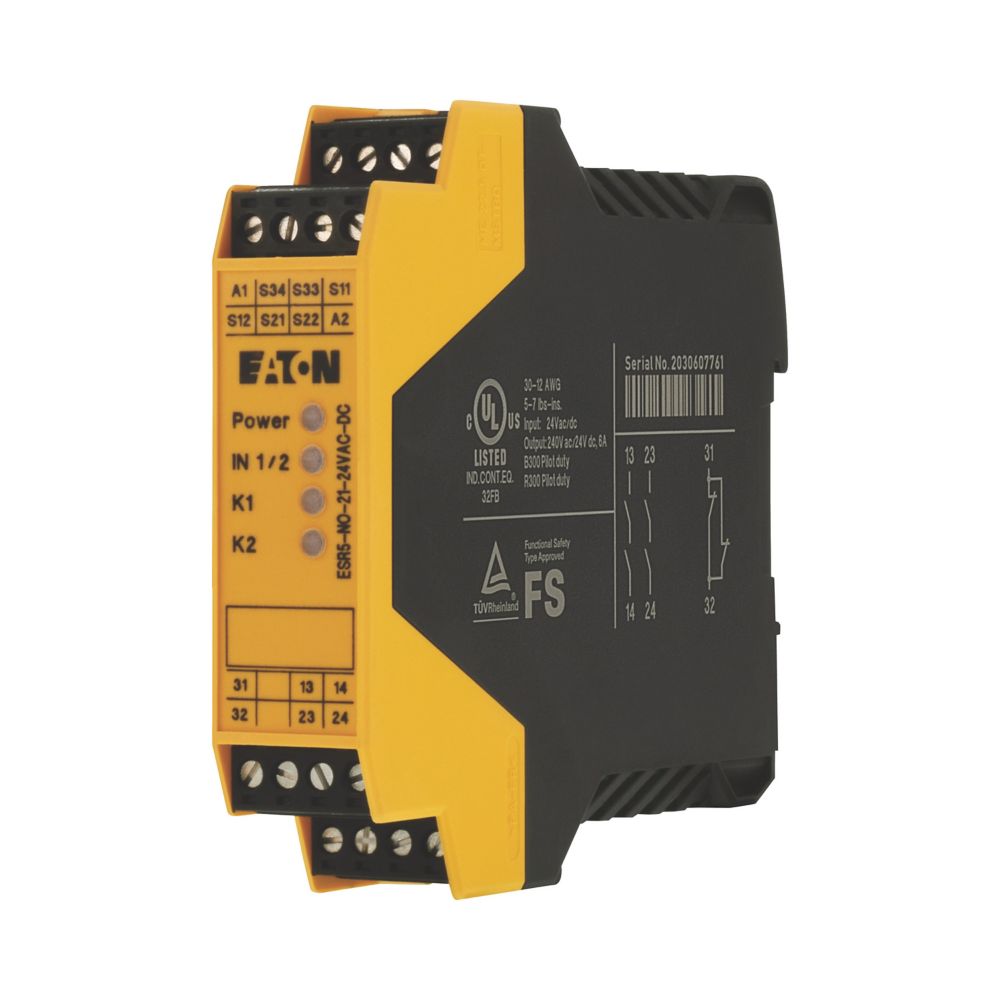

EATON 118700 Model code: ESR5-NO-21-24VAC-DC
General specifications
| Product Name |
Eaton ESR5 Safety relay
|
| Catalog Number |
118700
|
| Model Code |
ESR5-NO-21-24VAC-DC
|
| EAN |
4015081168408
|
| Product Length/Depth |
114.5 mm
|
| Product Height |
99 mm
|
| Product Width |
22.5 mm
|
| Product Weight |
0.165 kg
|
| Certifications |
IEC 61508, Parts 1-7
UL UL 508 IEC/EN 60204 UL report applies to both US and Canada UL File No.: E29184 Certified by UL for use in Canada CSA-C22.2 No. 14-95 EN 50178 CE IEC 62061 2014/30/EU CSA Class No.: 3211-83; 3211-03 EN ISO 13849-1 UL Category Control No.: NKCR; NKCR7 Machines 2006/42/EG |
| Catalog Notes |
Replacement: ESR5-NO-21-24VDC (EP-401061)
|
| Global Catalog |
118700
|
Product specifications
| Type |
|
| Mounting method |
Rail mounting possible
Top-hat rail fixing (according to IEC/EN 60715, 35 mm) |
| Operating temperature – max |
55 °C
|
| Operating temperature – min |
-20 °C
|
| Features |
2 Non-delayed enable current paths
Reinforced insulation Safe insulation Automatic reset |
| 10.10 Temperature rise |
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
|
| 10.11 Short-circuit rating |
Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
|
| 10.12 Electromagnetic compatibility |
Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
|
| 10.13 Mechanical function |
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
|
| 10.2.2 Corrosion resistance |
Meets the product standard’s requirements.
|
| 10.2.3.1 Verification of thermal stability of enclosures |
Meets the product standard’s requirements.
|
| 10.2.3.2 Verification of resistance of insulating materials to normal heat |
Meets the product standard’s requirements.
|
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects |
Meets the product standard’s requirements.
|
| 10.2.4 Resistance to ultra-violet (UV) radiation |
Meets the product standard’s requirements.
|
| 10.2.5 Lifting |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.2.6 Mechanical impact |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.2.7 Inscriptions |
Meets the product standard’s requirements.
|
| 10.3 Degree of protection of assemblies |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.4 Clearances and creepage distances |
Meets the product standard’s requirements.
|
| 10.5 Protection against electric shock |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.6 Incorporation of switching devices and components |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.7 Internal electrical circuits and connections |
Is the panel builder’s responsibility.
|
| 10.8 Connections for external conductors |
Is the panel builder’s responsibility.
|
| 10.9.2 Power-frequency electric strength |
Is the panel builder’s responsibility.
|
| 10.9.3 Impulse withstand voltage |
Is the panel builder’s responsibility.
|
| 10.9.4 Testing of enclosures made of insulating material |
Is the panel builder’s responsibility.
|
| Electric connection type |
Screw connection
|
| Fitted with: |
Approval according to UL
Approval for TÜV Detachable clamps Feedback circuit Start input |
| Pollution degree |
2
|
| Climatic proofing |
Dry heat to IEC 60068-2-2
Cold to EN 60068-2-1 Damp heat, constant, to IEC 60068-2-3 |
| Rated impulse withstand voltage (Uimp) |
6000 V AC
|
| Air pressure |
795 – 1080 hPa (operation)
|
| Altitude |
Max. 2000 m
|
| Category (EN 954-1) |
4
|
| Degree of protection |
Installation location: ≥ IP54
Terminals: IP20 Enclosure: IP20 IP20 |
| Environmental conditions |
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 14-95
Condensation: Non-condensing |
| Number of inputs |
1-channel
|
| Functions |
1-channel
2-channel |
| Safety performance level (EN ISO 13849-1) |
Level e
|
| Ambient operating temperature – max |
55 °C
|
| Ambient operating temperature – min |
-20 °C
|
| Ambient storage temperature – max |
70 °C
|
| Ambient storage temperature – min |
-40 °C
|
| Equipment heat dissipation, current-dependent Pvid |
0 W
|
| Heat dissipation capacity Pdiss |
0 W
|
| Heat dissipation per pole, current-dependent Pvid |
0 W
|
| Lifetime |
240 month
|
| Nominal current |
30 A
|
| Number of outputs (safety related, delayed) with contact |
0
|
| Number of outputs (safety related, delayed, semiconductors) |
0
|
| Number of outputs (safety related, undelayed) with contact |
2
|
| Number of outputs (safety related, undelayed, semiconductors) |
0
|
| Number of outputs (signaling function, delayed) with contact |
0
|
| Number of outputs (signaling function, delayed, semiconductors) |
0
|
| Number of outputs (signaling function, undelayed) with contact |
1
|
| Number of outputs (signaling function, undelayed, semiconductors) |
0
|
| Rated control supply voltage (Us) at AC, 50 Hz – max |
26.4 V
|
| Rated control supply voltage (Us) at AC, 50 Hz – min |
0 V
|
| Rated control supply voltage (Us) at AC, 60 Hz – max |
24 V
|
| Screwdriver size |
2, Terminal screw, Pozidriv screwdriver
0.6 x 3.5 mm, Terminal screws |
| Voltage type |
AC/DC
|
| Connection type |
M3 screw terminals
|
| Mounting position |
As required
|
| Breaking power |
144 W max., resistive load (τ = 0 ms), at 24 V DC
1500 VA, max., resistive load (τ = 0 ms), at 250 V AC 35 W max., inductive load (τ = 40 ms), at 220 V DC 48 W max., inductive load (τ = 40 ms), at 24 V DC 288 W max., resistive load (τ = 0 ms), at 48 V DC 35 W max., inductive load (τ = 40 ms), at 110 V DC 40 W max., inductive load (τ = 40 ms), at 48 V DC 77 W max., resistive load (τ = 0 ms), at 110 V DC 88 W max., resistive load (τ = 0 ms), at 220 V DC |
| Overvoltage category |
III
|
| Short-circuit protection rating |
6A gL/gG, NEOZED (N/C), Output fuse, External, Output data
10A gL/gG, NEOZED (N/O), Output fuse, External, Output data |
| Duty factor |
100 %
|
| Emitted interference |
According to EN 61000-6-4
|
| Current consumption |
140 mA, AC
65 mA, DC |
| Material |
Enclosure: Polyamide (PA), not reinforced
Contacts: silver tin oxide, gold plated (AgSnO2, 0.2 µm Au) |
| Interference immunity |
According to EN 662061_x
According to EN-61000-6-2 |
| Tightening torque |
0.6 Nm, Screw terminals
|
| Mounting width |
22.5 mm
|
| Suitable for |
Monitoring of position switches
Safety relay for monitoring emergency stop and protective door switch Monitoring of emergency-stop circuits Module used to safely interrupt electrical circuits |
| Relative humidity |
< 75 %
|
| LED indicator |
Status indication of SmartWire-DT network: Green LED
|
