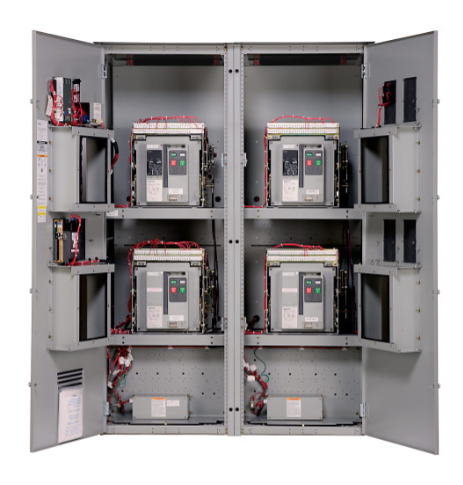

Eaton Bypass isolation power frame type automatic transfer switches,
Eaton’s bypass isolation power frame type automatic transfer switches (ATS) are designe for mission critical systems,
where redundancy is require allowing maintenance, inspection,
and testing to be performe while maintaining constant power to the load.
Designe for applications where total system coordination is desire,
they offer integral overcurrent protection with an electronic trip unit.
Core features
- Rated for 200-5000A up to 600V with open delayed, open in-phase or closed transition
- Automatic, non-automatic, and manual modes of operation under load
- UL 1008 listed with short-circuit and short time current ratings
- Available with Eaton’s Arcflash Reduction Maintenance System to reduce the incident energy levels for downstream equipment during periods of maintenance
- Drawout construction for mission critical systems where preventive maintenance, inspection, and testing must be accomplished while maintaining continuous power to the load
- Integral service entrance rated option
