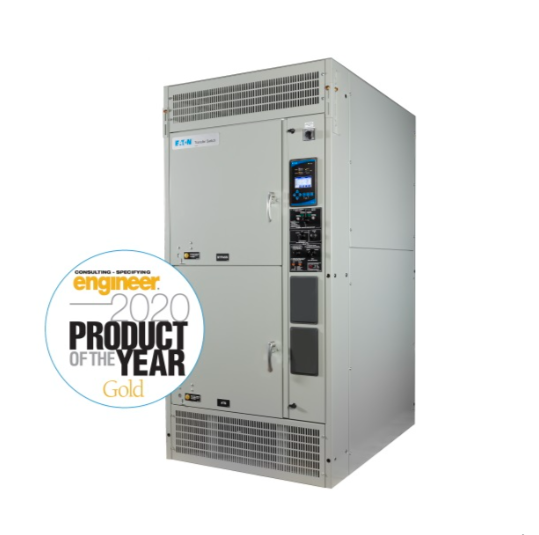

Eaton Bypass isolation contactor type automatic transfer switche,
Eaton’s Bypass Isolation Contactor Type Automatic Transfer Switches include dual automatic switching mechanisms,
that provide redundancy for critical applications.
The ATS distributes electrical power to the load,
while the automatic bypass serves as a backup.
When the ATS is isolate for test, power is routed through the automatic bypass switch to ensure that critical loads remain powere without interruption. Compartmentalized steel barrier construction physically isolates the automatic bypass switch, ATS,
and electrical control circuitry for increased safety when performing maintenance activities.
Core features
- Provides uninterrupte emergency power to life safety and other critical loads while allowing maintenance of the automatic transfer switch to performe
- Rate for 100-3000 A up to 600 V and is available in open delaye, open in-phase or close transition
- UL1008 and CSA 22.22 No. 178-1978 listed
- Compartmentalized design provides enhanced worker safety
- Automatic bypass switch and automatic transfer switch (ATS) provide unparalleled operational redundancy
- Optional dual draw-out design that allows the ATS or automatic bypass switch to withdrawn
- Automatic and non-automatic operation modes
