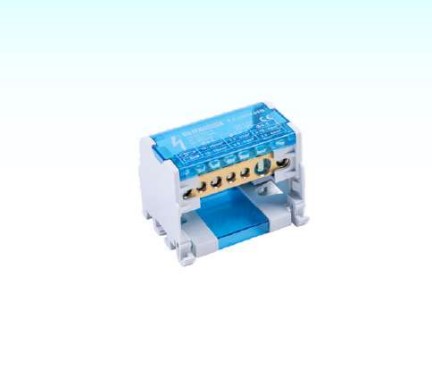

3-Phase Distribution Terminal Block
| Category | Specifications |
|---|---|
| Certifications | CB/CE/UKCA/RoHS |
| Dimensions | 50×64×50mm |
| Materials | • Screw: Zinc-Coated Steel • Conductor: Brass • Housing: PA66 V-0 • Cover: PC |
| Electrical Data | • Standards: IEC 60947-7-1 • Voltage: 500V • Current: 100A • Icw: 4.5kA • Ipk: 20kA |
| Wiring Data | Main Input (A): • Connection Points: 1 • Torque: 2-3N·m • Wire Range: – Rigid: 10-25mm² – Flexible: 10-25mm² Phase Outputs (A/B/C): |
| Packaging | • PCS/INCE packaging system • Quantity per inner box/master carton not specified |
Key Features:
-
Heavy-duty 3-phase design (100A capacity)
-
Single high-current input (25mm² max)
-
Three phase-separated outputs
-
Dual wire type support (rigid & flexible)
-
Compact cubic design (64mm height)
Technical Notes:
• Phase outputs have different wire compatibility:
-
Phase B accepts larger conductors (up to 6mm²)
-
Phases A/C support up to 4mm²
• All connections use 2-3N·m torque
• Flame-retardant PA66 V-0 housing
• Packaging details incomplete in source document
