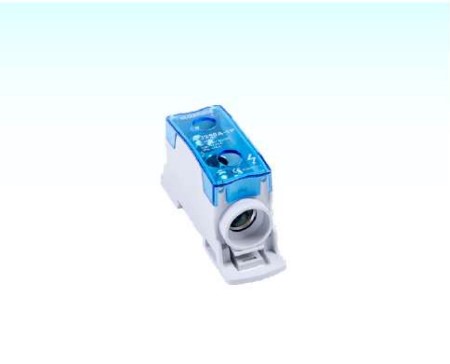

High-Current Terminal Block Specifications
| Category | Specifications |
|---|---|
| Certifications | CEI/CEI/UKCA/RoHS |
| Dimensions | 99.1×31.5×49.4mm |
| Materials | • Screw: Zinc-Coated Steel • Conductor: Tin-Coated Brass • Housing: PAG6 V-0 • Cover: PC |
| Electrical Data | • Standards: IEC 60947-7-1 • Voltage: 1000V • Current: 250A • Icw: 14.4kA • Ipk: 42kA |
| Wiring Data | • Connection Points: 1 input (A-B) + 1 output (B-C) • Torque: 19N-m (H8) • Diameter: 15.1mm • Metric Wire: 35-120mm² • Imperial Wire: 6-250kcmil |
| Packaging | • 4PCS per inner box • 72PCS per master carton (18 inner boxes) |
Key Features:
-
Heavy-duty construction for high-current applications (250A continuous)
-
Superior short-circuit withstand (14.4kA Icw / 42kA Ipk)
-
Wide wire range compatibility:
-
35-120mm² (Metric)
-
6-250kcmil (AWG)
-
-
Robust zinc-coated steel screws with 19N-m torque rating
-
Flame-retardant PAG6 V-0 housing with polycarbonate cover
-
Dual-port design (input/output) with identical specifications
