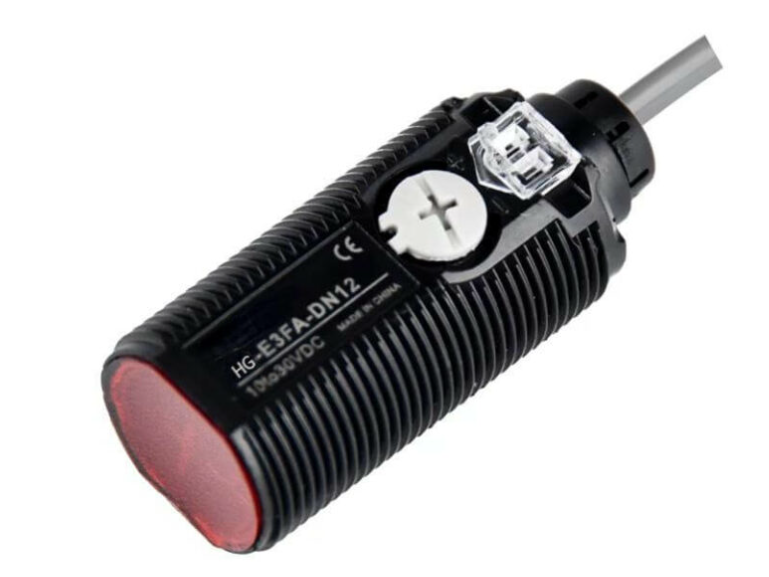

HG E3FA-DN11

HG E3FA-DN11,

Detection method:Regression reflex type
Detection distance:11:100mm12:300mm13:1m
Hysteresis:Less than 20%
Half power angle:-
Light source (wavelength):Red light emitting diode(624nm)
Supply voltage:DC10~30V(Including voltage fluctuations of less than 10% (p-p).)
Current consumption:Less than 25mA
Control output:NPN NO or PNP NO
Operating mode:-
load current:Below100mA
Residual voltage:Below3V
Worki nstructions: Action indicator (orange. stabillitv indicator (areen
Protection circuit:Power polarity reverse connection protection, output short circuit protection and output polarity reverse connection protection
Response time :0.5ms
Sensitivity adjustment:Single direction rotation
Ambientillumination(lightreceiving side):Incandescent lamp: less than 3000lx/Sunlight: less than10000lx
Ambienttemperature:Duringoperation:-25℃~55℃/during storage:-40℃~70℃(no icing condensation)

Ambienthumidity:storage:During operation: 35~85%/during35~95%(no condensation)
Insulationimpedance:Betweenthecharging part of the charging part above 20MΩ (DC50OV shake meter) and the shell
Resistance to highpressure:Durability: At 1000V AC, 50/60Hz, 1 minute between the charging part and the case
Vibration resistance:Durability:10~55Hzcomplex amplitude 1.5mm X, Y Z in each direction for 2 hours
Impact resistance:500m/S2, 3 times in x, Y, Z direction Degree of protection:IP66 Housing material:ABS
Lens and display section:PMMA knob:POM Nut:POM
Weight:Cable type:Approx.60g
