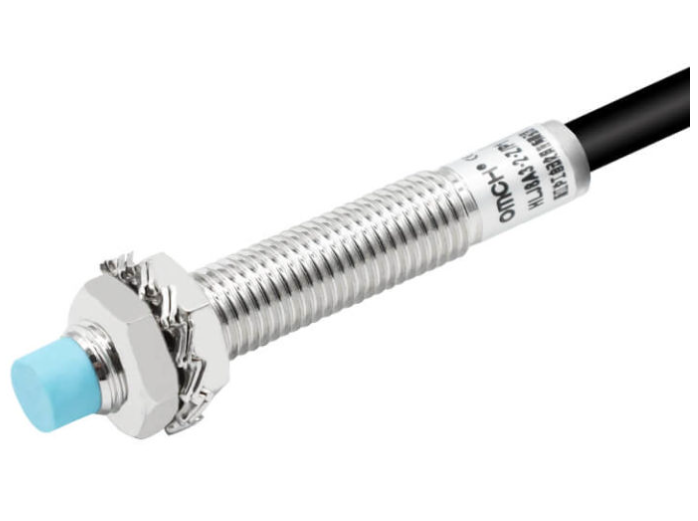

HLJ8A3-2-Z/P1 Waterproof Proximity Sensor

HLJ8A3-2-Z/P1 Waterproof Proximity Sensor

Add to wishlist
Category:
Share:

HLJ8A3-2-Z/P1 Waterproof Proximity Sensor,

Dimension M8*1
Installation type Shielded
All the
output
methods		 DC type NPN NO HLJ8A3-1-Z/N1
NC HLJ8A3-1-Z/N2
PNP NO HLJ8A3-1-Z/P1
NC HLJ8A3-1-Z/P2
Two-wire NO HLJ8A3-1-Z/D1
NC HLJ8A3-1-Z/D2
AC type Two-wire NO HLJ8A3-1-J/A1
NC HLJ8A3-1-J/A2
Detection range 1.5mm±10%
Setting distance 0-1.2mm
Delay distance ≤10% detection range
Detection object Magnetic metal (the detection distance decreases
when it is non-magnetic metal)
Standard detection object SPCC iron 8*8*1mm
Response frequency DC: 2kHz, AC: 50Hz
Supply voltage DC type: DC 12-24V (6-36V),
impulse (p-p) 10% below;
AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage AC1000V 50/60Hz 1min,
between charging part and housing
Voltage influence Inside ±15% rated supply voltage range,
at rated supply voltage value,
inside ±10% detection distance
Consumption current N/P type: ≤13mA, D type: ≤0.8mA,
A type: ≤1.7mA
Control output N/P type: ≤200mA, D type: ≤200mA,
A type: ≤200mA
Loop protection N/P/D type: reversal connection protection,
surge absorption,
load short-circuit protection, A type: surge absorption
Ambient temperature & humidity Operation temperature/storage temperature: -30~65℃ (no freeze,
no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence Temperature range -30~65℃,
at +23℃, ±15% detection distance;
Temperature range -25~60℃,
at +23℃, ±10% detection distance
Insulation impedance ≥50MΩ (DC500 megameter),
between charging part and housing
Material Housing: Nickel plated brass,
Detection surface: ABS
Protection class IP67
Cable length 2m
