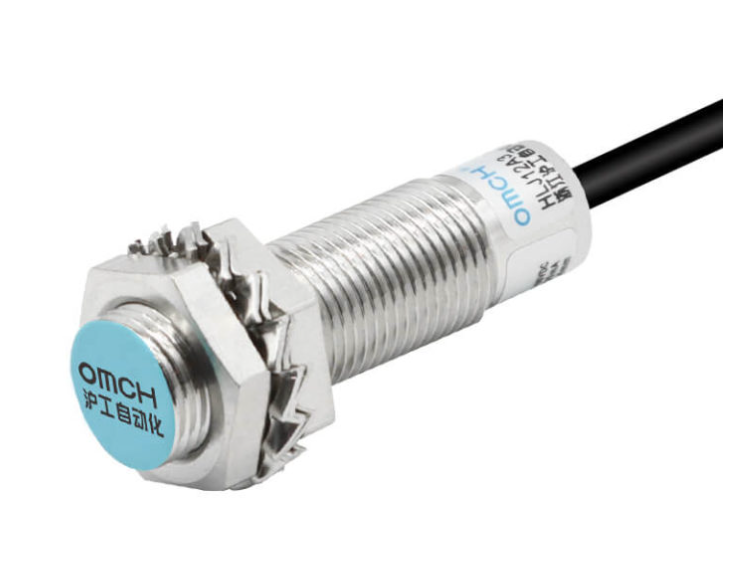

HLJ12A3-2-Z/P1 Waterproof Proximity Sensor,
| Dimension | M12*1 | |||
| Installation type | Shielded | |||
| All the output methods |
DC type | NPN | NO | HLJ12A3-2-Z/N1 |
| NC | HLJ12A3-2-Z/N2 | |||
| NO+NC | HLJ12A3-2-Z/N3 | |||
| PNP | NO | HLJ12A3-2-Z/P1 | ||
| NC | HLJ12A3-2-Z/P2 | |||
| NO+NC | HLJ12A3-2-Z/P3 | |||
| Two-wire | NO | HLJ12A3-2-Z/D1 | ||
| NC | HLJ12A3-2-Z/D2 | |||
| AC type | Two-wire | NO | HLJ12A3-2-J/A1 | |
| NC | HLJ12A3-2-J/A2 | |||
| Detection range | 2mm±10% | |||
| Setting distance | 0-1.6mm | |||
| Delay distance | ≤10% detection range | |||
| Detection object | Magnetic metal (the detection distance decreases when it is non-magnetic metal) |
|||
| Standard detection object | SPCC iron 12*12*1mm | |||
| Response frequency | DC: 1kHz, AC: 50Hz | |||
| Supply voltage | DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz |
|||
| Withstand voltage | AC1000V 50/60Hz 1min, between charging part and housing |
|||
| Voltage influence | Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance |
|||
| Consumption current | N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA | |||
| Control output | N/P type: ≤200mA, D type: ≤200mA, A type: ≤200mA |
|||
| Loop protection | N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption |
|||
| Ambient temperature & humidity | Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH |
|||
| Temperature influence | Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance |
|||
| Insulation impedance | ≥50MΩ (DC500 megameter), between charging part and housing |
|||
| Material | Housing: Nickel plated brass, Detection surface: ABS |
|||
| Protection class | IP67 | |||
| Cable length | 2m | |||
