Industrial Fanless PC Core i3 i5 i7,
pure aluminum,
with Onboard Intel Skylake-U 6th Core i3/i5/i7,
and Support 1*DDR4 1866/2133 , Max. Support 16GB RAM.
| Specification: | |
| Model | IBOX-601 Industrial Fanless pc |
| Processor | Onboard-Intel-Celeron-3855U, with（dDual-core-dua- threading-1.6GHz，2M third level cache） or Onboard-Intel-Core-i3-6100U, or Onboard-Intel-Core-i5-6200U, or Onboard-Intel-Core-i7-6500U, |
| CPU | Skylake-U |
| Memory | Support 1*DDR4 1866/2133 SODIMM memory slot， Max :16GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 510/520 |
| Display port | 1*VGA port，1*HDMI port |
| Front I/O | 4*USB2.0，2* COM ， 1* Power Switch |

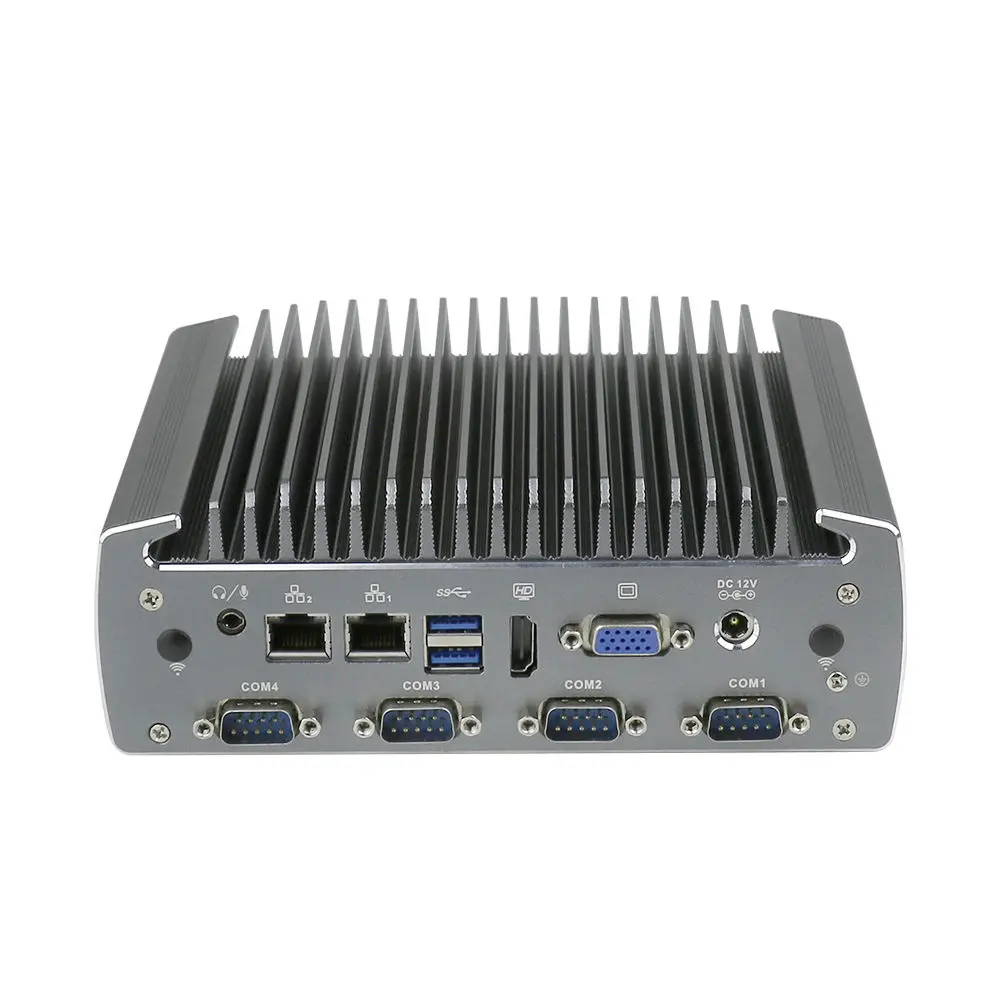

| Rear I/O | 4*4 2*USB3.0，4* COM， 2*Intel 1000M LAN,1*VGA， 1*HDMI，1*DC 、 1*Audio (Support Mic and Speaker at the same time） |
| Expansion Slot | Support 1*MINI PCIE slot（support MSATA）；
Support 1*MINI PCIE slot（WIFI/3G/4G Optional）， |
| Lan port | 2*Intel i211-AT 10/100/1000M Lan |
| Storage port | Support 1* MSATA slot，1*2.5” HDD |
| Power Supply | Support DC 12 V input |
| Other functions | Power-on, Time-on, network wake-up, PXE boot, watchdog(0-255) |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation, with Medical, Logistics Transportation, and Warehouse, Electronic Education etc. |
| Structure Parameter : | |
| Color | Titanium gray (Color can be customized) |
| Material | High-quality all aluminum， surface anodic oxidation |
| Size | 186* 150 * 66mm【No VESA mount】 |
| Weight | 1.6 kg【No VESA mount】 |
| Environmental Parameters : | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD）， -20℃ ～ +50℃（Industry SSD）， Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
