J1900 Din Rail Industrial Mini PC N11 DDR3LL 4G RAM Motherboard(CPU) Chassis 12V/4A power adapter

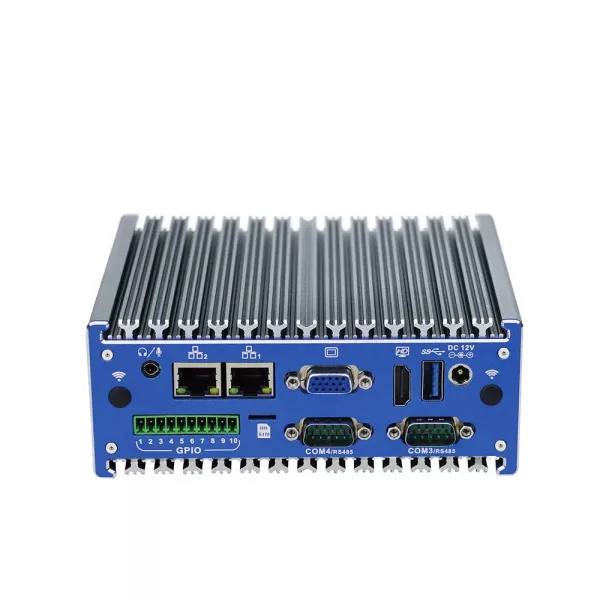

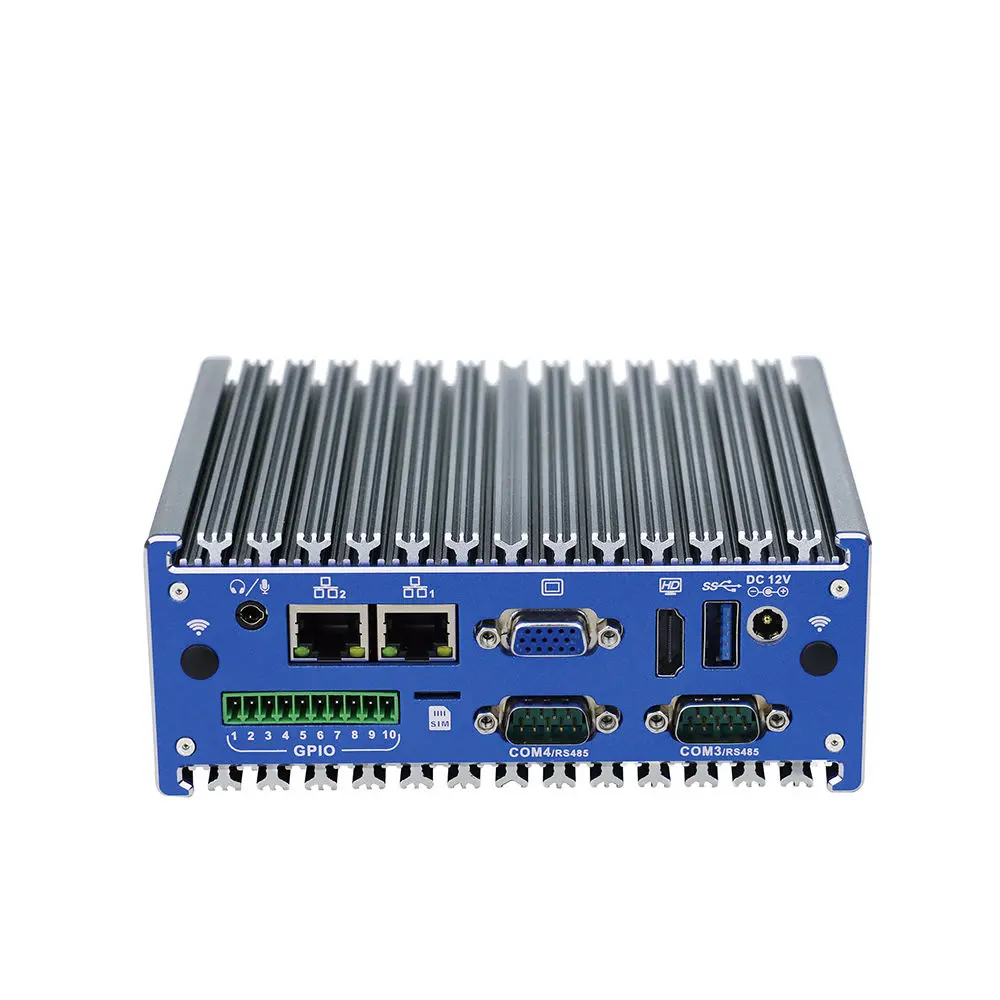

N11 Fanless Industrial Mini PC
Onboard Intel Celeron J1900 Quad Core
Onboard DDR3L 1600 4G RAM
1*MSATA，1*2.5” HDD
4*COM（2*COM RS232/485 Optional）
Desktop、Din Rail Mount、VESA、etc.
| System Parameter | |
| Model | N11 Industrial Mini PC |
| Processor | Intel Celeron J1900(quad core, 4 threads, 2MB Cache, 1.99GHz) |
| Chipset | J1900（Single Chip） |
| Memory | Onboard DDR3L 1600 4G RAM（Onboard 2G/8G Optional） |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics |
| Display Port | 1*VGA，1*HDMI（Support synchronous and asynchronous dual display） |
| Storage | Support 1*MSATA，Onboard 1*2.5”HDD |
| Expansion | Support 1*MINI PCIE（WIFI/Bluetooth/3G/4G Optional）
Support 1*MINI PCIE（Support MSATA；3G/4G/SIM Optional） Optional：TPM（TPM 1.2 / 2.0 Module Optional），1*USB2.0 |
| I/O | 1*Power Switch，4*USB3.0，2*COM, 1*DC，1*VGA, 1*HDMI，1*USB3.0，2*LAN，
1 SIM Slot1 Audio ( Support Mic and Speaker at the same time) 2 COM（RS232/485 Optional 1*10PIN Phoenix Terminal（4*Input 4*Output GPIO） |
| Network | 2*Intel i211-AT 1000M LAN |
| Input Voltage | Support DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity Timing boot Wake on LAN、PXE boot Watchdog（0～255 level） |
| Application | Automation，Medical，Transportation，Warehouse，Electric Education etc. |
| Structure Parameter | |
| Color | Titanium gray + blue (any color can be customized) |
| Material | High quality all aluminum |
| Dimension | 148 * 125 * 58 mm |
| Weight | 1.0 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
