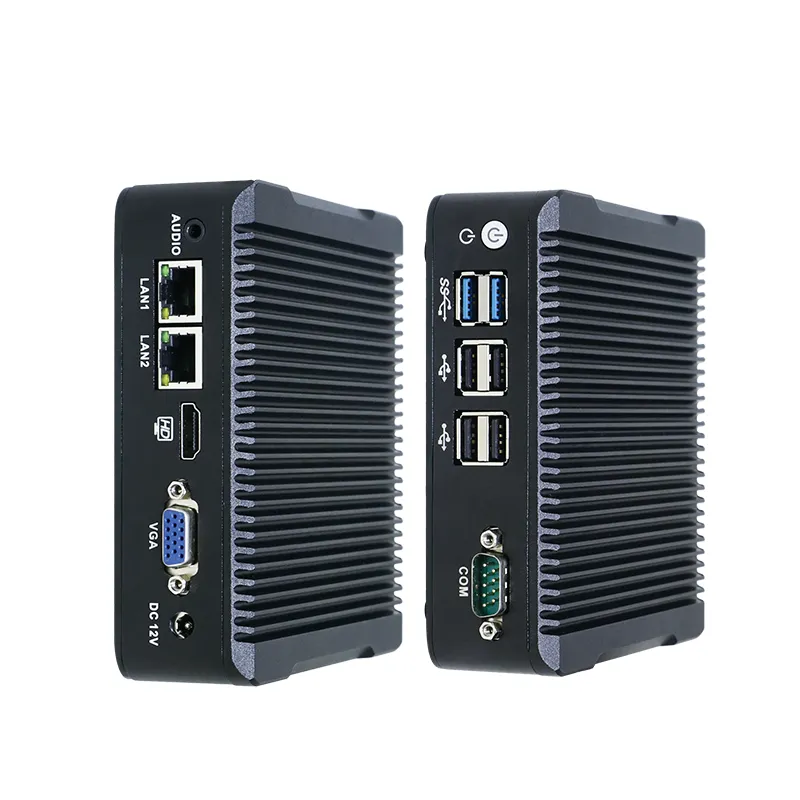

Small J1900 Quad Core Mini PC High-quality pure aluminum Case
Fanless Nano mini pc
Onboard Intel Celeron J1900 quad core processor
1*VGA 1*HD 1*MSATA 1*2.5”HDD
2*COM 4*USB or 1* COM 6*USB
2*1000M LAN
DesktopDin Rail MountVESA etc
| System Parameter | |
| Model | N3 Quad Core Mini PC |
| Processor | Onboard Intel Celeron J1900（Quad core quad threading，2MB Second Level Cache 1.99GHz） |
| Chipset | J1900（Single Chip） |
| Memory | Support 1*DDR3L 1333/1600MHz SODIMM RAM slot，Max. Support 8GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics |
| Display Port | 1*VGA，1*HDMI（Support synchronous and asynchronous dual display） |
| Storage | Support 1*MSATA，1*2.5”HDD |
| Expansion | Support 1*Mini PCIE Slot【WIFI/Bluetooth Optional】
Support 1*MINI PCIE Slot【Support MSATA】 |
| I/O | 1*Power Switch，1*USB3.0，3*USB2.0，2*RS232 COM1*Audio，
2*RJ45 LAN，1*VGA，1*HDMI，1*DC Input |
| Network | 2*10/100/1000M RTL8111E 1000M LAN |
| Input Voltage | Support DC 12V Input； |
| Other Function | Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
| Power Supply | DC 12V【DC 9～36V Input Optional】 |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
| Structure Parameter | |
| Color | Black【Any color can be customized】 |
| Material | High-quality pure aluminum |
| Dimension | 134 * 126 * 38.5mm |
| Weight | 0.7kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
