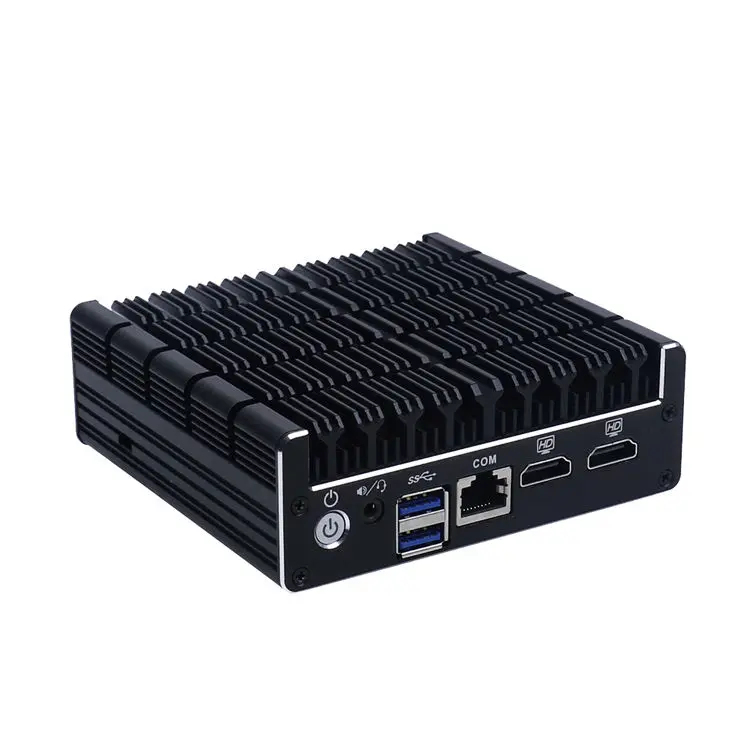

J3060 NUC Mini PC,
with All aluminum structure Fanless Ubuntu,
and Embedded Intel Celeron J3060 dual core CPU
| System Parameter | |
| Model | C3l2 Intel NUC mini pc |
| Processor | Intel Celeron J3060（dual core，1.6 GHz，Turbo boost 2.48 GHz) |
| Chipset | Intel integrated chipset |
| Memory | Support 1*DDR3L 1600MHz SODIMM ，Max: 8 GB |
| Video Card | Integrated intel HD graphic 320MHZ |
| Display | 2*HDMI（support synchronous and asynchronous display） |
| Front I/O | 1* Power Switch，1* Audio，2*USB3.0, 1* RJ-45 COM（Support Console）2* HDMI |
| Rear I/O | 2* RJ45 Lan，4* USB2.0 ，1* DC |
| Expansion Slot | Support 1*MINI PCIE(WiFi/BT is optional), Support 1*MINI PCIE(Support MSATA） |
| Network | 2* Intel i211AT |
| Storage | 1* MSATA Slot |
| Input Voltage | Support DC 12V Input； |
| Other Function | Auto power on when there is electricity, Timing boot、Wake on LAN、PXE boot, Watchdog（0～255 level）(Standard version doesn’t set these function) |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Business Office，HD Video Playback, Home Learning，Router，Network Security etc. |
| Structure Parameter | |
| Color | Black【Any color can be customized】 |
| Material | High-quality pure aluminum |
| Dimension | 115 * 107.5 * 39mm |
| Weight | 0.5kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
