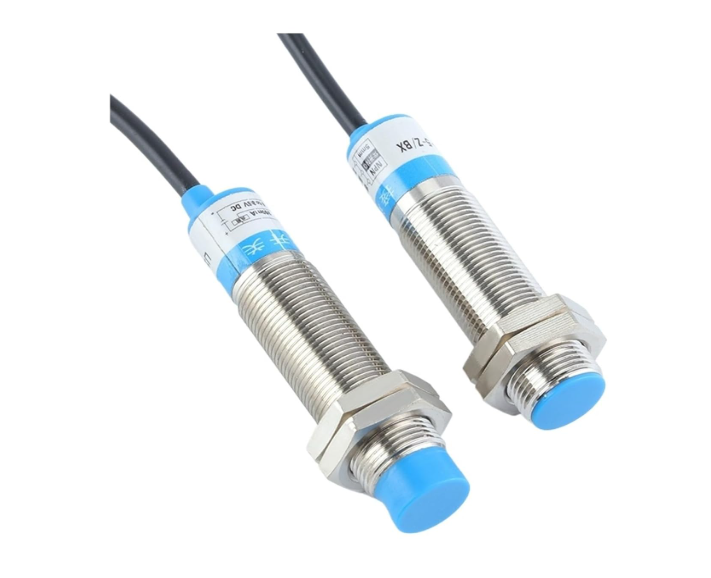

LJ14A3-3-Z M14 Inductive Proximity Sensor Switch,
3/5mm Sensing Distance Waterproof Approach Sensor Switch Non/PNP.
LJ14A3-3-Z / LJ14A3-5-Z M14 Inductive Proximity Sensor Switch 3/5mm Sensing Distance Waterproof Approach Sensor Switch NON/PNP
Product Type: Non-Embeded Type / Embeded Type
Material: Metal
Switch Category: Inductive Type Proximity Switch
Product appearance: Cylinder Type
Detection Distance: 3/5MM±10%
Electrical life: more than 10, 000 cycles;
Working Voltage: DC6~36V/AC90~250V
Output Current: 200mA
Note:The default length of the product connection line is 1.2M. If you need to customize the length, please contact the store.
Current : 200mA
Material : Alloy
Switch Type : Proximity Switch
Model Number : LJ14A3-3-Z / LJ14A3-5-Z
Item Type : SWITCHES
Is Smart Device : No
Origin : Mainland China
Product Name : Waterproof Proximity Sensor Switch
Product Type : Non-Embeded Type/Embeded Type
Sensing distance : 3/5MM±10%
Switch Category : Inductive Type Proximity Switch
Standard detection object : Metal
Insulation resistance : 50M
IP class : IP67
Output Form : NPN/PNP Output
Output State : NO/NC
