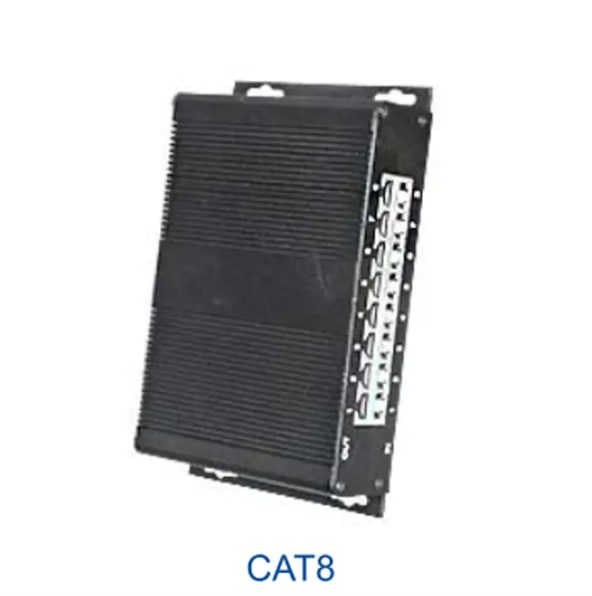

LY21-2 CAT1/CAT4/CAT8 RJ45 NETWORK SURGE PROTECTIVE DEVICE,
The RJ45 CAT1/4/8 SPD provides surge protection for lower-speed network lines, including telecom, POE, and data transmission.
It uses MOV ZnO for effective surge suppression.
Constructed with PVC/PA66/PBT housing, durable and flame-retardant.
Complies with IEC 61643-11:2011 / EN 61643-11:2022, certified CE & TUV.
We are a factory-based OEM/ODM manufacturer and supplier, offering wholesale, in bulk, and bulk buy services.
Perfect for data networks, industrial monitoring systems, and communication lines, DIN rail ready.
| Model | LY21-2 |
| Spec | CAT1/CAT4/CAT8 |
| Rated operating voltage | 5V |
| Max continuous operating voltage | 6V |
| Rated load current | 500mA |
| Flow withstand capacity | 5KV&2.5KA |
| Clamping voltage x-×(1.2/50) | 30V |
| Transmission rate | 100Mbps |
| Insertion loss | ≤0.2dB |
| lnterface type | RJ45 |
| Protection grade | IP20 |
