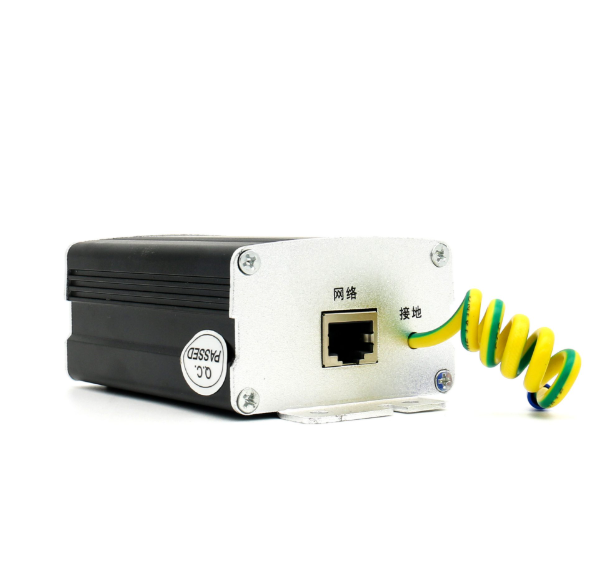

LY21-2 RJ45 NETWORK SURGE PROTECTIVE DEVICE(POE),
The RJ45 POE network SPD protects PoE devices and network equipment from transient surges.
With MOV ZnO inside, it safeguards switches, routers, and IP cameras efficiently.
Encased in PVC/PA66/PBT housing, flame-resistant and compact.
Certified to IEC 61643-11:2011 / EN 61643-11:2022, CE & TUV approved.
As a factory OEM/ODM manufacturer and supplier, we provide wholesale, bulk buy, and in bulk options.
Perfect for LAN networks, IP cameras, and industrial communication, mounted on DIN rail.
| Model | LY21-2 | ||
| Spec | POE | ||
| Max continuous operating voltage | Power part | 60VDC | |
| Rated load current | 500mA | ||
| Nominal flow rate | 2.5KA | ||
| Max flow rate | 5KA | ||
| Voltage protection level | 120V | ||
| Rated operating voltage | Network part | 5V | |
| Max continuous operating voltage | 6V | ||
| Rated load current | 500mA | ||
| Flow withstand capacity | 5KV&2.5KA | ||
| Clamping voltage ×-× (1.2/50) | 30V | ||
| Transmission rate | 100Mbps | ||
| lnsertion loss | ≤0.2dB | ||
| Interface type | RJ45 | ||
| Protection grade | IP20 | ||
