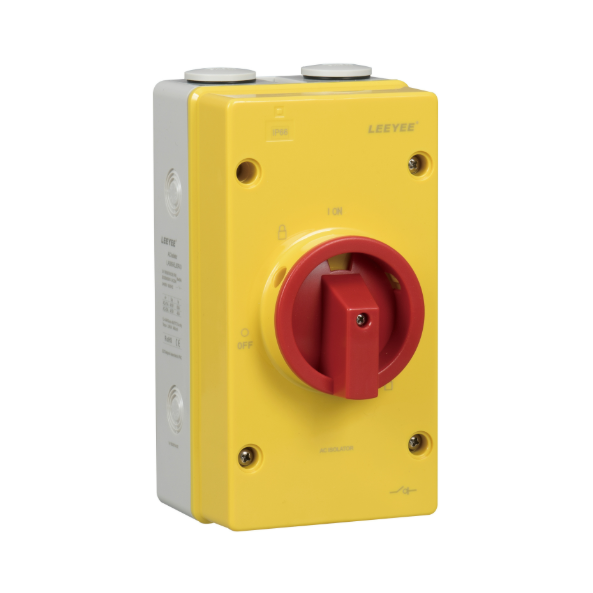

LYAS69 SERIES AC ISOLATOR 690V 80A,
LYAS69 isolation switch is widely used in industrial control machinery,
and various electrical appliances, and can effectively solve the problems of emergency disconnection,
safety disconnection, machine control, motor control and soon.
- EL installation
- With alloy contacts, electrical special silver long life and high reliability.
- Small size, space-saving installation.
- Construct a protective finger to make the operation safe.
- With a variety of installation, ease of application of various purpose(panel mount, rail mount, sealed switch box type).
- IP66 degree of protection.
- Five years warranty.
| Current | 20A | 32A | 40A | 63A | 80A | |
| Type | LYAS69-EL2OR-4 | LYAS69-EL32R-4 | LYAS69-EL40R-4 | LYAS69-EL63R-3 | LYAS69-EL80R-3 | |
| Rated carry current | 20A | 32A | 40A | 63A | 80A | |
| Rated operating current AC-23A |
16A | 25A | 32A | 45A | 45A | |
| Rated operating current AC-3 |
12A | 23A | 30A | 37A | 37A | |
| Rated power control AC-23A |
240V | 4KW | 7.5KW | 9KW | 15KW | 15KW |
| 440V | 7.5KW | 12.5KW | 16KW | 22KW | 22KW | |
| Rated power control AC-3 |
240V | 3KW | 5.5KW | 7.5KW | 11KW | 11KW |
| 440V | 5.5KW | 11KW | 15KW | 18.5KW | 18.5KW | |
| UL-CSA Motor load |
240V | 3KW | 5KW | 5KW | 10KW | 10KW |
| 440V | 7.5KW | 10KW | 10KW | 20KW | 20KW | |
| Rated short-time withstand current |
250A | 400A | 500A | 600A | 850A | |
| Cable | 0.5-10MM² | 1-16MM² | ||||
| Screw torque | 0.8-1.7N ·m | 1.5-2N ·m | ||||
| Rated insulation voltage | 690V | |||||
