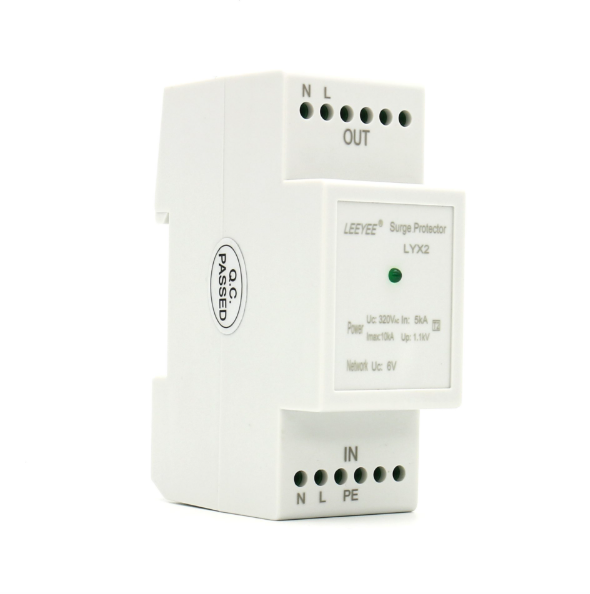

LYX Din Rail CCTV /CAMERA SURGE PROTCTIVE DEVICE,
The CCTV/camera DIN-rail SPD protects video equipment from lightning surges and transient voltage spikes.
It uses MOV ZnO components, delivering fast discharge and long-term reliability.
Encased in PVC/PA66/PBT housing, flame-resistant and durable.
Certified under IEC 61643-11:2011 / EN 61643-11:2022, with CE & TUV.
We are a professional OEM/ODM manufacturer and factory, offering wholesale, in bulk, and bulk buy solutions.
Perfect for CCTV cameras, security surveillance networks, and industrial monitoring systems, mounted via DIN rail.
| Model | LYX | |||
| Rated operating voltage | Power part | 12VAC | 24VAC | 220VAC |
| Max continuous operating voltage | 15VAC | 30VAC | 320VAC | |
| Nominal flow rate | 5KA | |||
| Max flow rate | 10KA | |||
| Voltage protection level | 200V | 300V | 1100V | |
| lnterface type | Connection terminal | |||
| Rated operating voltage | Control part | 12V | ||
| Max continuous operating voltage | 15V | |||
| Rated load current | 500mA | |||
| Flow withstand capacity | 10KV&5KA | |||
| Clamping voltage x-x (1.2/50) | 60V | |||
| Transmission rate | 100Mbps | |||
| Insertion loss | ≤0.2dB | |||
| lnterface type | Connection terminal | |||
