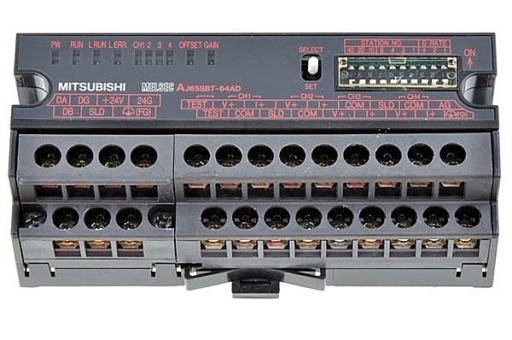

MITSUBISHI ELECTRIC PLC CC-Link compact I/O module AJ65SBT-64AD,
4-analog channels; voltage/current; 16 bit,
4-channel analog input (Voltage/Current), screw terminal.
| Series | CC-LINK |
|---|---|
| Type | REMOTE ANALOG INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Analogue Inputs | 4 |
| Input Voltage Range (V) | -10-10; 0-5; 1-5 |
| Input Current Range (mA) | |
| Wiring | SCREW |
| Int. Current Consumption (A) |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
Product Dimensions & Weight
0,2
| Width (mm) | 118 |
|---|---|
| Height (mm) | 50 |
| Depth (mm) | 40 |
| Weight (kg) |
Product Packaging
0000
| Cardboard (g) | 75 |
|---|---|
| Other paper (g) | 1 |
| Aluminum (g) | |
| Steel (g) | |
| Styrofoam (g) | |
| Other plastic (g) | 5 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) |
