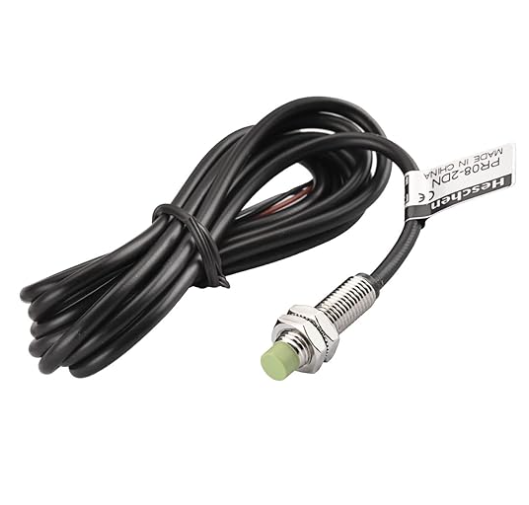

M8 Inductive Proximity Sensor Switch PR08-2DN,
Cylindrical Type Detector 2mm DC12-24V 3-Wire NPN NO(Normally Open) CE.
- Standard sensing target : 8×8×1mm(iron)
- Current specification: Current consumption: Max. 10mA
- Response frequency: 1.5kHz
- Material: Brass(nickel plated)
- Cable Standard/material: Standard cable
- Protection structure: IP67
- Approval: CE
- Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
- Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
- Hysteresis(distance): Max. 10% of sensing distance
- Residual voltage: Max. 2V
