Mini Server PC 4 Lan Fanless Pure aluminum structure,
with Powerful Quad Core Processor,
Small PC-Intel Celeron J4125,
and DDR4 MAX 8GB RAM Slot.
| System Parameter | |
| Model | N1041 Firewall Mini PC |
| Processor | Intel Celeron J4125, （Quad core quad threading，4MB cache，2.0GHz，Max turbo 2.7GHz） |
| CPU Architecture | Gemini Lake Refresh |
| Chipset | Intel UHD Graphics 600 |
| Memory | Support 1*DDR4 MAX 8GB RAM Slot |
| BIOS | AMI UEFI BIOS |
| Display Port | 1*HD，1*DP |
| Storage | 1*M.2 2280SSlot，1*2.5’’ HDD |
| Expansion | 1*M.2 2280 M-key Slot（Support SATA Protocol） |
| 1*M.2 2230 E-key Slot（Only support USB BT） | |
| 1*Mini PCIE Slot, （4G Optional，External SIM slot：only support USB Wifi/BT） |
|
| Front I/O | 1*Power Switch，1*HD，1*DP，4*USB3.0, 1*SIM Slot , 1*RJ45 COM（Support console），1*Reset |

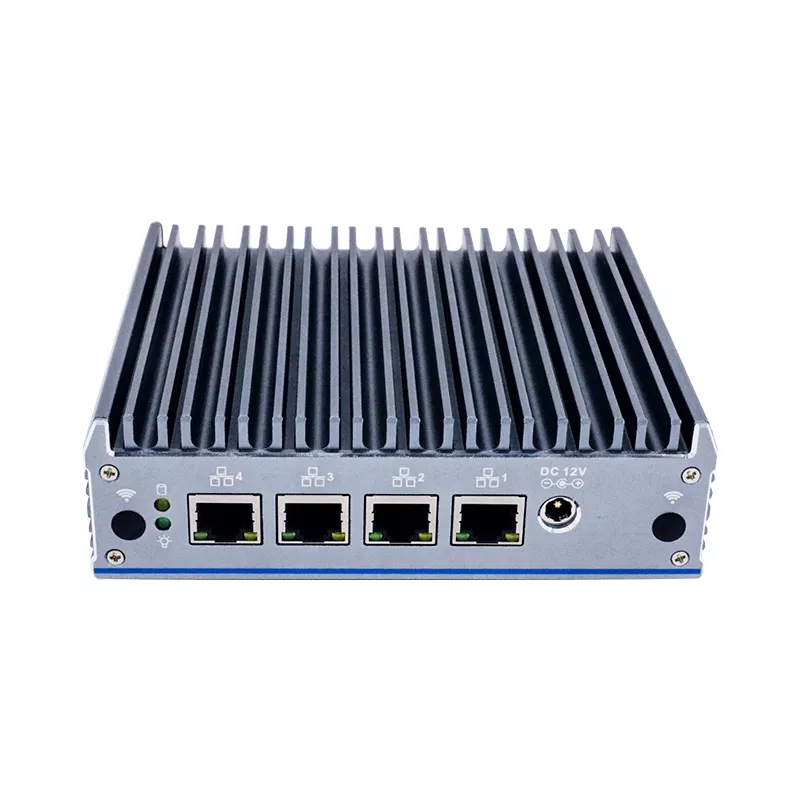

| Rear I/O | 1*DC，4*1000M LAN |
| Network | 4*Intel i211-AT 10/100/1000M Ethernet LAN |
| Input Voltage | DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity, Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level） |
| Application | Firewall, VPN, Network Server, Network Security, Router and etc |
| Structure Parameter | |
| Color | Titanium gray |
| Material | High-quality all aluminum, surface anodic oxidation |
| Dimension | 144 * 126.5 * 42 mm |
| Weight | 0.7 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD), -20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
