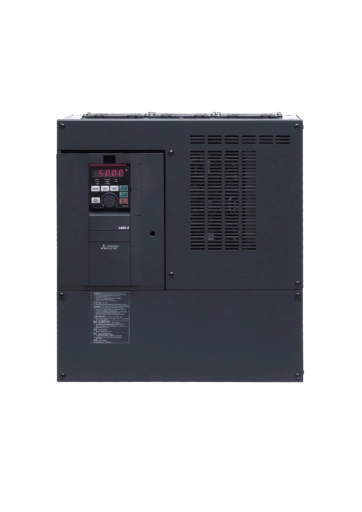

MITSUBISHI ELECTRIC A800-E Series Panel Inverters FR-A840-00930-E2-60,
37kW – 560kW Power Range,
Standing type panel, three-phase 400VAC – 500VAC, IP31 protection class.
| Series | FR-A SERIES |
|---|---|
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 93 |
| Rated Output Current LD (A) | 85 |
| Rated Output Current ND (A) | 71 |
| Rated Output Current HD (A) | 57 |
| Rated Motor Capacity SLD (kW) | 45 |
| Rated Motor Capacity LD (kW) | 45 |
| Rated Motor Capacity ND (kW) | 37 |
| Rated Motor Capacity HD (kW) | 30 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | OPTIONAL |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss SLD (W) | 1110 |
| Power Loss LD (W) | 1020 |
| Power Loss ND (W) | 840 |
| Power Loss HD (W) | 700 |
| Standby Power Consumption (W) | 28 |
| Protection Class | IP00 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK |
| UKCA | COMPLIANT |
Product Dimensions & Weight
| Width (mm) | 435 |
|---|---|
| Height (mm) | 550 |
| Depth (mm) | 250 |
| Weight (kg) | 41 |
Product Packaging
| Cardboard (g) | 4908,8 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 155 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
