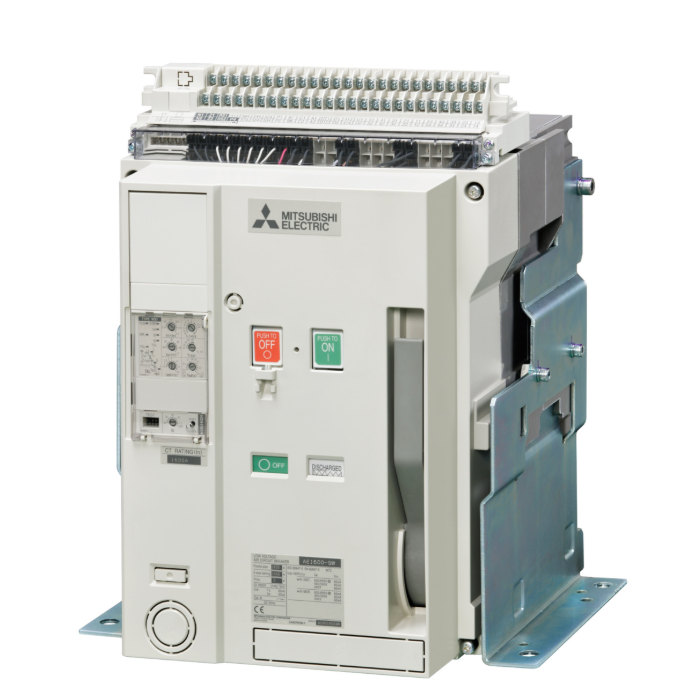

MITSUBISHI ELECTRIC Air Circuit Breaker AE1600-SW 4P BARE FIXED AX10,
Switch-disconnector; In max=1600A; Icw (1s) = 65kA; 5a5b.
| Series | AE-SW SERIES |
|---|---|
| Type | FIXED TYPE |
| Frame Size | 1600 |
| Rated Voltage (V) | 690 |
| Number of Poles | 4 |
| Rated Current (A) | 1600 |
| Current Type | AC |
| Current Range Ir (A) | 800-1600 |
| Breaking Capacity at 500V (kA) | 65 |
| Compliant with Standard(s) | EN60947-2, JIS C 8201-2-1, IEC60947-2 |
| Cycles with Rated Current | 5000 |
| Cycles without Rated Current | 25000 |
| No of Auxiliary Contacts NO | 5 |
| No of Auxiliary Contacts NC | 5 |
| Internal Power Supply (V) | 100-240 AC 100-125 DC |
| Power consumption (W) | 41 |
| Automatic Tripping Device | ELECTRONIC |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | NON-COMPLIANT |
| EAC | NON-COMPLIANT |
| Shipping Approvals | ABS, BV, CCS, DNV-GL, LR, NK |
| UKCA | COMPLIANT |
Product Dimensions & Weight
| Width (mm) | 425 |
|---|---|
| Height (mm) | 410 |
| Depth (mm) | 290 |
| Weight (kg) | 52 |
Product Packaging
| Cardboard (g) | 3000 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 348 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 7500 |
| Glass (g) | 0 |
| Others (g) | 0 |
