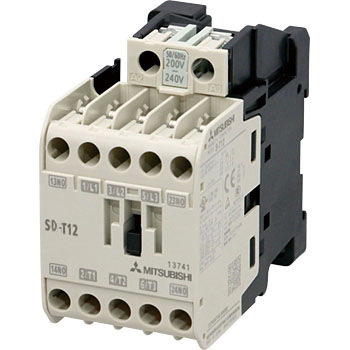

MITSUBISHI ELECTRIC Magnetic Contactor SD-T12 DC24V 1A1B,
5,5kW; 1NO + 1NC; Us = DC 24V.
| Series | MS-T SERIES MAGNETIC CONTACTOR |
|---|---|
| Type | NON-REVERSING, DC OPERATED |
| Frame Size | 12 |
| Current Type | DC TYPE |
| Coil Voltage (V) | 24 |
| Rated Current (A) | 3-PHASE AC690V: 7 |
| Rated Capacity (kW) | 3-PHASE AC220-240V: 3.5, 3-PHASE AC380-440V: 5.5, 3-PHASE AC690V: 5.5 |
| Rated Voltage (V) | 690 |
| Number of Poles | 3 |
| No of Auxiliary Contacts NO | 1 |
| No of Auxiliary Contacts NC | 1 |
| Frequency Range (Hz) | 50/60 |
| Min. Ambient Temperature (°C) | -10 |
| Max. Ambient Temperature (°C) | 40 |
| Wiring | SCREW-CLAMP |
| Design / Styling | STANDARD |
| Compliant with Standard(s) | EN60947-4-1, IEC60947-4-1, JIS C8201-4-1 |
| Mech. Durability (at no Load) | 10 000 000 OPERATIONS |
| Protection Class | IP20 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
Product Dimensions & Weight
| Width (mm) | 43 |
|---|---|
| Height (mm) | 75 |
| Depth (mm) | 100 |
| Weight (kg) | 0,42 |
Product Packaging
| Cardboard (g) | 500 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 1 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
