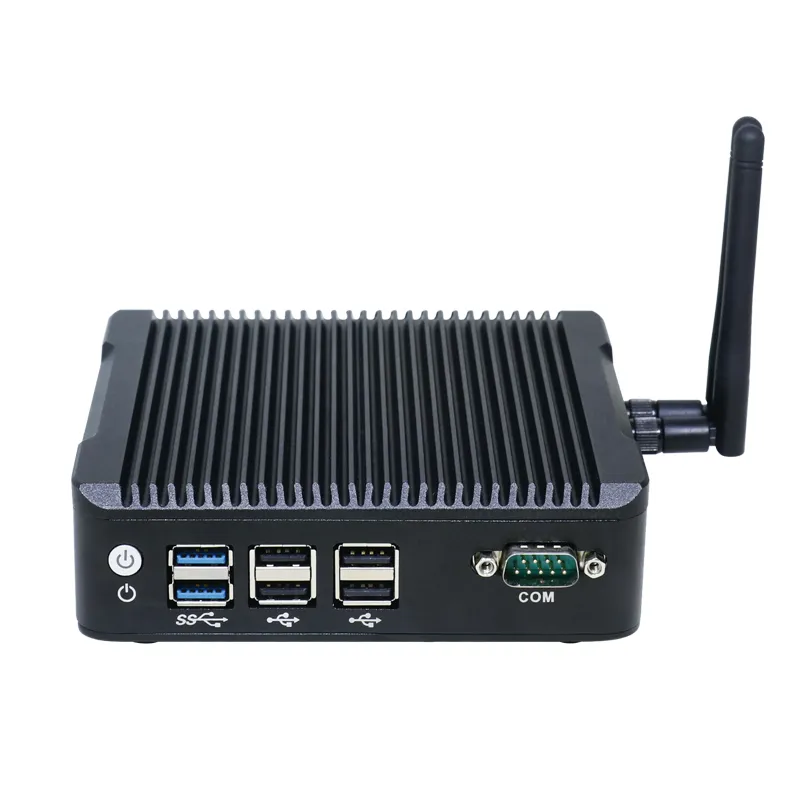

J3710 Quad Core Fanless Mini PC
1xDDR3L 1600MHz RAM Slot Max 8GB
1*MSATA 1*2.5” HDD
1xDP 2xHDMI HD 4K three Display
2xUSB3.0 4xUSB2.0 1xRS232 COM
Desktop Din Rail Mount VESA etc.
| System Parameter | |
| Model | N5 Plus |
| Processor | Intel Celeron N3160 (Quad core quad threading，1.6GHz，Max turbo 2.24GHz) |
| Chipset | Integrated Intel HD Graphics |
| Memory | Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot，Max. Support 8GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics |
| Display Port | 1*DP，2*HDMI（Support synchronous and asynchronous three display）（DP、HDMI Max. Support Resolution：3840×2160 @ 30Hz） |
| Storage | Support 1*MSATA，1*2.5”HDD |
| Expansion | Support 1*Mini PCIE Slot【WIFI/3G/4G Optional】，Embedded SIM Slot；Support 1*MINI PCIE Slot【Support MSATA】 |
| I/O | 1*Power Switch，2*USB3.0，4*USB2.0，1*RS232 COM，1*Audio，2*RJ45 LAN，1*DP，2*HDMI，1*DC Input |
| Network | 2*10/100/1000M RTL8111E 1000M LAN |
| Input Voltage | Support DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on、 Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
| Structure Parameter | |
| Color | Black【Any color can be customized】 |
| Material | High-quality pure aluminum |
| Dimension | 134 * 126 * 38.5mm |
| Weight | 0.7kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
