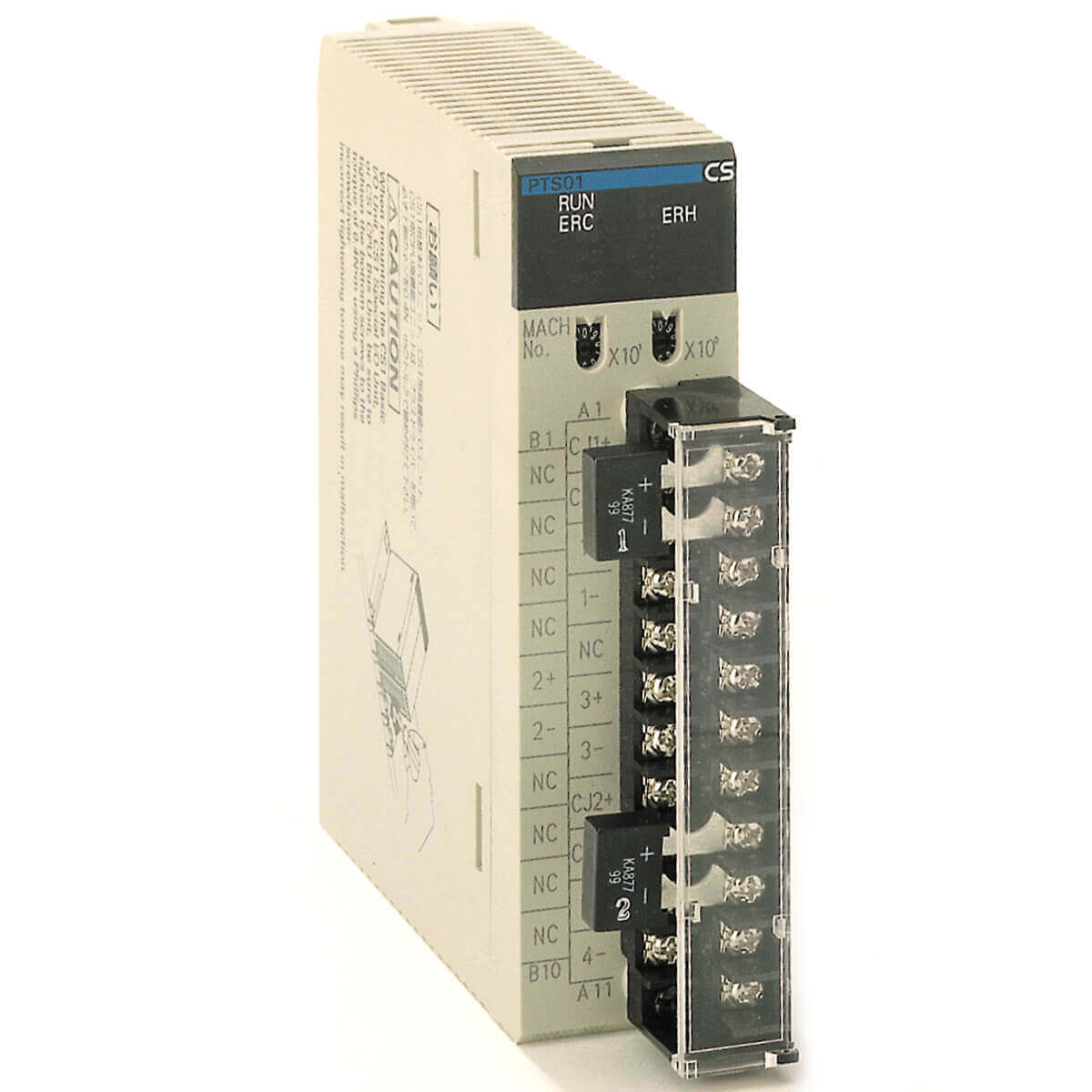

omron CS1W-PTS SYSMAC CS-series Process Analog I/O Units
Provides the functionality of isolators, power supplies, signal converters, and other devices.
Isolated-type Thermocouple Input Units
| Unit type |
Product name |
Input points |
Signal range selection |
I/O type | Conver- sion speed |
External connec- tion |
No. of unit numbers allocated |
Current consump- tion (A) |
Model | Stand- ards |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5V | 24V | ||||||||||
| CS1 Special I/O Units |
Isolated- type Thermo- couple Input Units  |
4 inputs |
Set separately for each input |
B, E, J, K, L, N, R, S, T, U, WRe5-26, PLII, ± 100 mV |
20 ms/ 4 inputs, 10 ms/ 2 inputs |
Removable terminal block |
1 | 0.12 | 0.08 | CS1W-PTS11 | UC1, N, CE |
| 4 inputs |
R, S, K, J, T, L, B |
250 ms/ 4 inputs |
0.25 | – | CS1W-PTS51 | UC1, CE |
|||||
| 8 inputs |
R, S, K, J, T, L, B |
250 ms/ 8 inputs |
0.18 | 0.06 | CS1W-PTS55 | ||||||
| 4 inputs |
B, E, J, K, N, R, S, T, ± 80mV |
150 ms/ 4 inputs |
0.15 | 0.15 | CS1W-PTS01-V1 | ||||||
Isolated-type Resistance Thermometer Input Units
| Unit type |
Product name |
Input points |
Signal range selection |
I/O type |
Conver- sion speed (resolu- tion) |
External connec- tion |
No. of unit numbers allocated |
Current consump- tion (A) |
Model | Stand- ards |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5V | 24V | ||||||||||
| CS1 Special I/O Units |
Isolated- type Resistance Thermometer Input Units  |
4 inputs |
Set separately for each input |
Pt100, JPt100, Pt50, Ni508.4 |
20 ms/ 4 inputs, 10 ms/ 2 inputs |
Removable terminal block |
1 | 0.12 | 0.07 | CS1W-PTS12 | UC1, N, CE |
| 4 inputs |
Pt100, JPt100 |
250 ms/ 4 inputs |
0.25 | – | CS1W-PTS52 | UC1, CE |
|||||
| 8 inputs |
Pt100, JPt100 |
250 ms/ 8 inputs |
0.18 | 0.06 | CS1W-PTS56 | ||||||
| 4 inputs |
Pt100, JPt100 |
100 ms/ 4 inputs |
0.15 | 0.15 | CS1W-PTS02 * | ||||||
| Isolated- type Resistance Thermometer Input Units (Ni508.4 Ω ) |
4 inputs |
Ni508.4 | 100 ms/ 4 inputs |
0.15 | 0.15 | CS1W-PTS03 | |||||
* Product no longer available to order.
