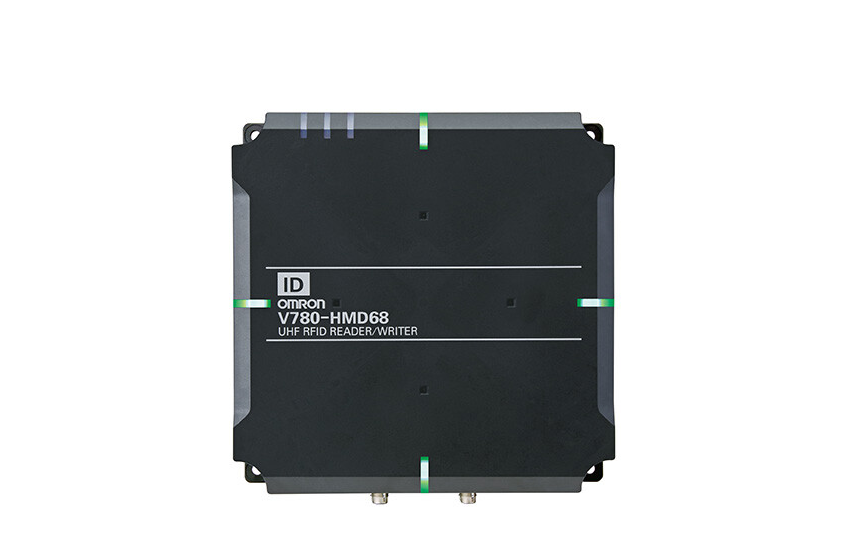

Omron V780 Series UHF RFID System V780 Series 3 in 1 UHF RFID System: Antenna, Amplifier & Controller
General Specifications
V780-HMD68-EIP-EU
| Item | V780-HMD68-ETN-[][] | V780-HMD68-EIP-[][] | V780-HMD68-ETN-[][]-S |
|---|---|---|---|
| Dimensions | 250 × 250 × 70 mm (D × H × W, excluding protruding parts and cables) | ||
| Supply voltage | 24 VDC (-15% to +10%) Class2 | ||
| Power consumption | 10 W max. | ||
| Ambient operating temperature | -10 to 55°C (with no icing) | ||
| Ambient operating humidity | 25% to 85% (with no condensation) | ||
| Ambient storage temperature | -25 to 70°C (with no icing) | ||
| Ambient storage humidity | 25% to 85% (with no condensation) | ||
| Insulation resistance | 20 MΩ min. (at 500 VDC) between cable terminals and case | ||
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min between cable terminals and case | ||
| Vibration resistance | No abnormality after application of 10 to 500 Hz, double amplitude: 1.5 mm, acceleration: 100 m/s2, 10 sweeps in each of 3 axis directions (up/down, left/right, and forward/backward) for 11 minutes each |
||
| Shock resistance | No abnormality after application of 500 m/s2, 3 times each in 6 directions (Total: 18 times) |
||
| Degree of protection | IP54 (IEC 60529:2001) | ||
| Materials | Plastic case: PBT Metal case: Die-cast aluminum (ADC12) |
||
| Weight | Approx. 3 kg | ||
| Mounting method | Four M6 bolts | ||
| Host communications interface | Ethernet 10BASE-T/100BASE-TX | ||
| Host communications protocol | Modbus/TCP base | EtherNet/IP | Multi-Reader/Writer Function only *1 |
| Multi-Reader/Writer function | Master/Slave | Master/Slave | Slave |
| Accessories | Instruction Sheet (1), IP address label (1), Startup Guide (1), Ferrite core (2) *2, and EU DECLARATION OF CONFORMITY (1) *3 |
||
| Regulations | See Regulations on below for the regulations. | ||
*1. Communicates via the master reader/writer (V780-HMD68-E[][]-[][]) Although the PLC or other host device cannot control the slaves, the Web Server function (browser interface) can be used.
*2. A ferrite core is packaged with Model V780-HMD68-ETN-EU/-IN.
*3. A EU DECLARATION OF CONFORMITY is packaged with Model V780-HMD68-ETN-EU.
Regulations
| Model | Regulations |
|---|---|
| V780-HMD68-ETN-JP V780-HMD68-EIP-JP V780-HMD68-ETN-JP-S |
Premises Radio Station (920-MHz-band Moving Object Differentiation Wireless Facilities), ARIB STD-T106 |
| V780-HMD68-ETN-KR V780-HMD68-EIP-KR V780-HMD68-ETN-KR-S |
 |
| V780-HMD68-ETN-CN V780-HMD68-EIP-CN V780-HMD68-ETN-CN-S |
Ministry of Information Industry No. 205 (2007) |
| V780-HMD68-ETN-TW V780-HMD68-EIP-TW V780-HMD68-ETN-TW-S |
NCC LP0002 4.8 RFID |
| V780-HMD68-ETN-IN V780-HMD68-EIP-IN V780-HMD68-ETN-IN-S |
the G.S.R.36 (E) |
| V780-HMD68-ETN-MY V780-HMD68-EIP-MY V780-HMD68-ETN-MY-S |
MCMC MTSFB TC T007:2014 |
| V780-HMD68-ETN-SG V780-HMD68-EIP-SG V780-HMD68-ETN-SG-S |
Singapore: IMDA TS SRD2 Thailand: NTC TS 1010-2550 (RFID 920-925 MHz) |
| V780-HMD68-ETN-EU V780-HMD68-EIP-EU V780-HMD68-ETN-EU-S |
2014/53EU (RE Directive) |
| V780-HMD68-ETN-RU V780-HMD68-EIP-RU V780-HMD68-ETN-RU-S |
к решению ГКРЧ от 07.05.2007 № 07-20-03-001 |
| V780-HMD68-ETN-US V780-HMD68-EIP-US V780-HMD68-ETN-RU-S |
FCC 15.247 (United states) ISED RSS-247 (Canada) |
| V780-HMD68-ETN-MX V780-HMD68-EIP-MX V780-HMD68-ETN-MX-S |
IFT-008 NYCE NOM-208 |
Tag Communications Specifications
V780-HMD68-ETN-JP/V780-HMD68-EIP-JP/V780-HMD68-ETN-JP-S
| Item | V780-HMD68-ETN-JP/V780-HMD68-EIP-JP/V780-HMD68-ETN-JP-S |
|---|---|
| Applicable countries | Japan |
| Maximum Radiated Power | 4 W e.i.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag |
40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer |
• 80 kbps (High-speed Mode) * • 20 kbps (Standard Mode) * |
| Used frequencies (Described at the center frequency of each channel) |
3 channels (916.8/918.0/919.2 MHz) License station |
| Channel interval | 200 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
Mode depending on the interference waves.
V780-HMD68-ETN-KR/V780-HMD68-EIP-KR/V780-HMD68-ETN-KR-S
| Item | V780-HMD68-ETN-KR/V780-HMD68-EIP-KR/V780-HMD68-ETN-KR-S |
|---|---|
| Applicable countries | Korea |
| Maximum Radiated Power | 4 W e.i.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag |
40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer |
• 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 6 channels (917.3/917.9/918.5/919.1/919.7/920.3 MHz) FHSS |
| Channel interval | 200 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
Mode depending on the interference waves.
V780-HMD68-ETN-CN/V780-HMD68-EIP-CN/V780-HMD68-ETN-CN-S
| Item | V780-HMD68-ETN-CN/V780-HMD68-EIP-CN/V780-HMD68-ETN-CN-S |
|---|---|
| Applicable countries | China |
| Maximum Radiated power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag |
40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer |
• 80 kbps (High-speed Mode) * • 20 kbps (Standard Mode) * |
| Used frequencies | 16 channels (920.625 to 924.375 MHz) FHSS |
| Channel interval | 250 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
Mode depending on the interference waves.
V780-HMD68-ETN-TW/V780-HMD68-EIP-TW/V780-HMD68-ETN-TW-S
| Item | V780-HMD68-ETN-TW/V780-HMD68-EIP-TW/V780-HMD68-ETN-TW-S |
|---|---|
| Applicable countries | Taiwan |
| Maximum Radiated power | 4 W e.i.r.p (indoor use only) |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag |
40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer |
• 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 10 channels (922.75 to 927.25 MHz) FHSS |
| Channel interval | 500 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
Mode depending on the interference waves.
V780-HMD68-ETN-IN/V780-HMD68-EIP-IN/V780-HMD68-ETN-IN-S
| Item | V780-HMD68-ETN-IN/V780-HMD68-EIP-IN/V780-HMD68-ETN-IN-S |
|---|---|
| Applicable countries | India |
| Maximum Radiated Power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag |
40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer |
• 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 3 channels (865.7/866.3/866.9 MHz) FHSS |
| Channel interval | 200 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
Mode depending on the interference waves.
V780-HMD68-ETN-MY/V780-HMD68-EIP-MY/V780-HMD68-ETN-MY-S
| Item | V780-HMD68-ETN-MY/V780-HMD68-EIP-MY/V780-HMD68-ETN-MY-S |
|---|---|
| Applicable countries | Malaysia |
| Maximum Radiated power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag |
40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer |
• 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 8 channels (919.25 to 922.75 MHz) FHSS |
| Channel interval | 500 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
Mode depending on the interference waves.
V780-HMD68-ETN-SG/V780-HMD68-EIP-SG/V780-HMD68-ETN-SG-S
| Item | V780-HMD68-ETN-SG/V780-HMD68-EIP-SG/V780-HMD68-ETN-SG-S |
|---|---|
| Applicable countries | Singapore and Thailand |
| Maximum Radiated Power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag |
40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer |
• 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 8 channels (920.75 to 924.25 MHz) FHSS |
| Channel interval | 500 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
Mode depending on the interference waves.
V780-HMD68-ETN-EU/V780-HMD68-EIP-EU/V780-HMD68-ETN-EU-S
| Item | V780-HMD68-ETN-EU/V780-HMD68-EIP-EU/V780-HMD68-ETN-EU-S |
|---|---|
| Applicable countries | Under RE direct |
| Maximum Radiated Power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag |
40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer |
• 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 4 channels (865.7/866.3/866.9/867.5 MHz) FHSS |
| Channel interval | 200 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
Mode depending on the interference waves.
V780-HMD68-ETN-RU/V780-HMD68-EIP-RU/V780-HMD68-ETN-RU-S
| Item | V780-HMD68-ETN-RU/V780-HMD68-EIP-RU/V780-HMD68-ETN-RU-S |
|---|---|
| Applicable countries | Russia |
| Maximum Radiated Power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag |
40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer |
• 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 3 channels (866.3/866.9/867.5 MHz) FHSS |
| Channel interval | 200 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
Mode depending on the interference waves.
V780-HMD68-ETN-US/V780-HMD68-EIP-US/V780-HMD68-ETN-US-S
| Item | V780-HMD68-ETN-US/V780-HMD68-EIP-US/V780-HMD68-ETN-US-S |
|---|---|
| Applicable countries | United States and Canada |
| Maximum Radiated Power | 4 W e.i.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag |
40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer |
• 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 50 channels (902.75 to 927.25 MHz) FHSS |
| Channel interval | 500 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-MX/V780-HMD68-EIP-MX/V780-HMD68-ETN-MX-S
| Item | V780-HMD68-ETN-MX/V780-HMD68-EIP-MX/V780-HMD68-ETN-MX-S |
|---|---|
| Applicable countries | Mexico |
| Maximum Radiated Power | 4 W e.i.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag |
40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer |
• 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 50 channels (902.75 to 927.25 MHz) FHSS |
| Channel interval | 500 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
Mode depending on the interference waves.
Recommended Power Supply (24 VDC)
| Item | Condition |
|---|---|
| Supply voltage | 24 VDC -15% to +10% |
| Output current | 500 mA min. |
| Safety standard | SELV (Safety Extra Low Voltage) |
RF Tag (Recommended)
| Model | V780-A-JIME-Z3BLI-10 (made by Toppan Forms Co., Ltd.) |
|---|---|
| Dimensions | 150 × 14 × 6 mm (W × H × D) |
| IC chip, memory | Monza X 8K UII (EPC): 128 bits User memory: 8,192 bits |
| Write life / Data retention | 10,000 writes / 10 years |
| 100,000 writes / 1 year | |
| Operating temperature | -20 to 65°C |
| Operating humidity | 5% to 95% |
| Storage temperature | -30 to 70°C |
| Storage humidity | 5% to 95% |
| Material | Polycarbonate plastic |
| Weight | Tag: Approx. 15 g |
| Degree of protection | IP68 (IEC 60529: 2001) |
RF Tag Attachment (Recommended)
| Model | V780-A-TA-133 (made by Toppan Forms Co., Ltd.) |
|---|---|
| Dimensions | 180 × 50 × 30 mm (W × H × D) |
| Operating temperature | -20 to 65°C |
| Operating humidity | 5% to 95% |
| Storage temperature | -30 to 70°C |
| Storage humidity | 5% to 95% |
| Material | Polycarbonate plastic |
| Weight | Approx. 128 g |
