Powerful 12th gen core i3 i5 i7 4K Mini PC Barebone,
with 4096×2160@Hz 3*Intel i226-V 2.5G Lan
| System Parameter | |
| Model | N3322 |
| Processor | Intel Core i3 1215U（Six core Eight threads，Turbo. 4.4 GHz） |
| Intel Core i5 1235U（Ten core Twelve threads，Turbo. 4.4 GHz） | |
| Intel Core i7 1255U（Ten core Twelve threads，Turbo. 4.7 GHz） | |
| Memory | 1*DDR5 4800 SODIMM memory slot，Max. 32 GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Intel(R) UHD Graphics |
| Display Port | 3*HD，Max.4096×2160@Hz |
| Storage | Support 1*M.2 2280 Slot，1*2.5”HDD |
| Expansion | 1*M.2-2280 M-Key slot（NVME）
1*M.2-3052 B-key slot（USB3.0 signal，support 4G/5G），External SIM card slot 1*M.2-2230 E-key slot（support WIFI、BT） |
| I/O | 2*COM support RS232/RS485 ,1*SIM slot,4*USB3.1,1*Power Button

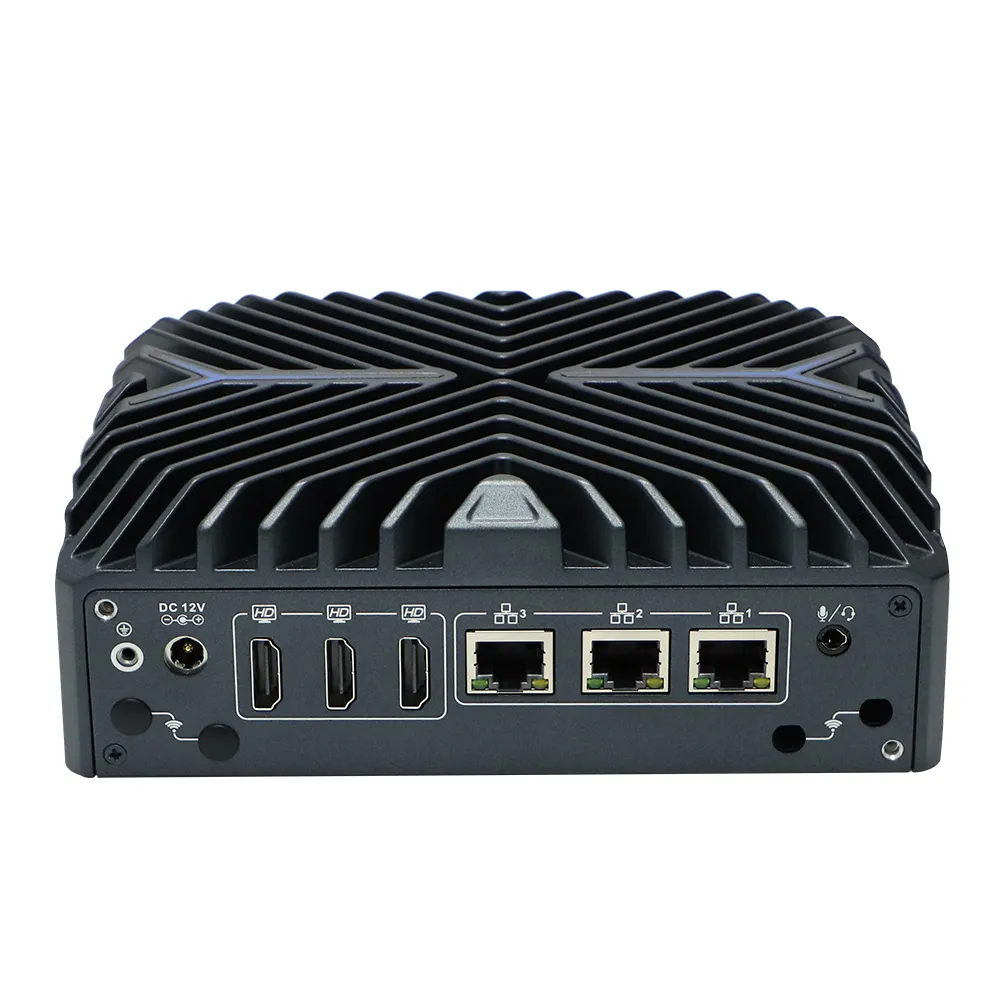

1*DC port，3*HD，3*Intel 2.5G Lan，1*audio interface(2-in-1),4 Antenna holes |
| Network | 3*Intel i226-V 2.5G Lan |
| Input Voltage | DC 12V |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Power-on, timed startup, network wake up, PXE startup, and watchdog (level 0-255), and TPM2.0 security encryption(Standard version doesn’t set these function) |
| Application | Industrial Control, Industrial Automation, Robot, IoT gateway, and Edge computing, and Machine Vision, AGV/ARM, etc. |
| Structure Parameter | |
| Color | Metallic Black【Any color can be customized】 |
| Material | High-quality all aluminum |
| Dimension | 170 * 140 * 58 mm |
| Weight | 1.1 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
