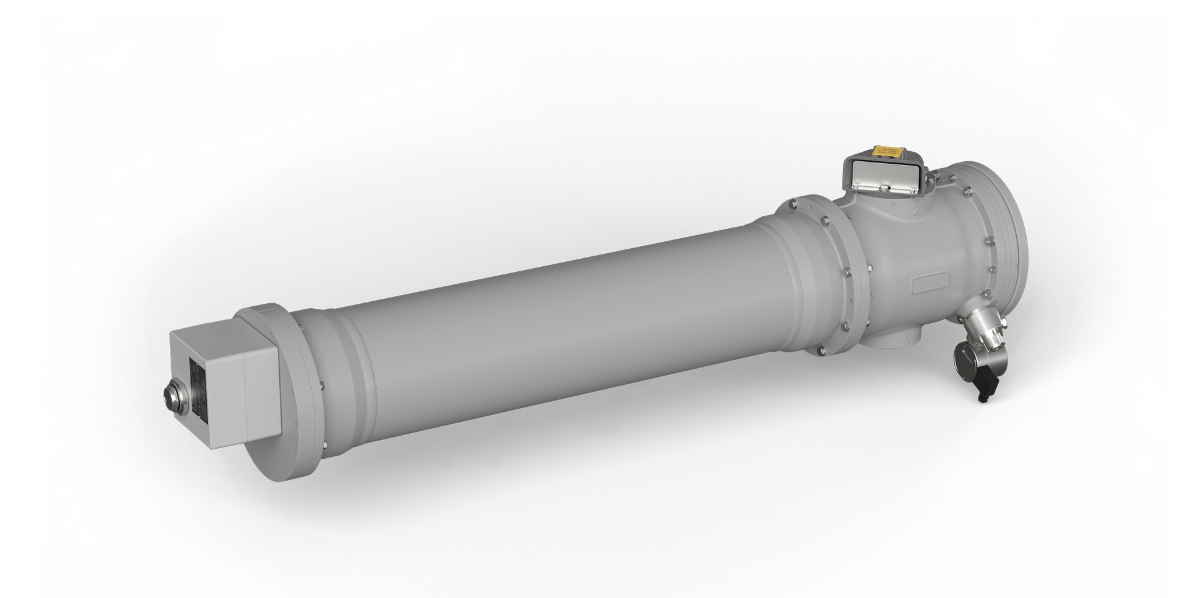

Resistive Capacitive Voltage Divider RGK high voltage,
Resistive capacitive voltage dividers type RGK (RC divider),
are use in high voltage networks within the 72.5-550 kV range.
They divide the primary voltage into a standardised,
equivalent secondary voltage for meters,
measuring and protection devices.
Features
- Ferroresonance-free and no saturation effects
- Secondary output can operate under short-circuit or no-load conditions
- AC and DC accuracy class ±0.1% @fR
- Measurement of harmonics possible up to 1 MHz
- Transient signals can be measure
- Accuracy with harmonics up to 10 kHz of ±0.2
