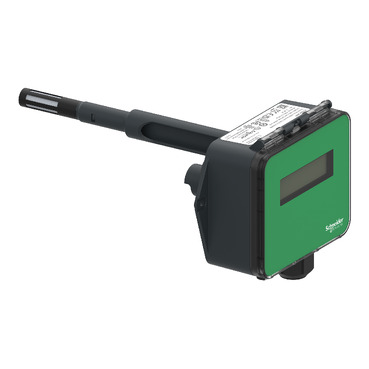

Schneider Humidity sensor SpaceLogic Sensors SHD2 Series LCD display BACnet Modbus temperature transmitter SHD2LP2A
SpaceLogic SHD2 Series Humidity Sensors are duct mount sensors for
monitoring humidity and temperature to ensure a building’s optimum energy
efficiency. Each device is an active sensor that converts a measurement into
BACnet MS/TP or Modbus RTU output.
As an integral part of Schneider Electric EcoStruxtureTM Building Operation
(EBO) software, the SHD2 protocol models’ Ready-Connect feature enables a
plug & play experience for easy integration and configuration.
Different models are available based on application requirements for lower-cost
installations.
SHD2 is available with an LCD display option on select models
SHD2XP2A

Specifications

Main
Range of product SpaceLogic
Product or component type Sensor
Type of measurement Humidity
Temperature
Device application HVAC
location Indoor
Calibration certificate Humidity: replaceable RH element available in 1% & 2% with NIST
Sensor type Thin film capacitive, replaceable humidity
Solid state temperature
Transmitter temperature
Colour Duct:
Communication port protocol BACnet MS/TP
Modbus RTU
Communication network type Wired
Depth 249 mm
Height 100 mm
Width 133 mm
Display type LCD display
Connections – terminals Screwless terminals
Enclosure material Polycarbonate strong housing
Humidity measurement accuracy +/- 2 % 0…100 % RH
Relative humidity 0…95 % RH, non-condensing
Analogue output type 4…20 mA
0…5 V DC
0…10 V DC
Output type Analog
Standards EN 61000
EN 61000-6-2
EN 61000-6-3
EN 61326-1
UL 916
FCC part 15 class A
REACH
ICES-003
RoHS
Storage Relative Humidity 0…95 % RH, non-condensing
[Us] rated supply voltage 20…30 V DC
24 V AC
Temperature measurement accuracy +/- 0.2 °C
Measurement temperature -35…60 °C
Temperature resolution 0.1 °C
Product name Plant Room Air Quality Sensor
Product brand Schneider Electric
Range SHD2 Series
Complementary
Market segment Buildings
Environment
IP degree of protection IP65
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.684 cm
Package 1 Width 14.605 cm
Package 1 Length 31.75 cm
Package 1 Weight 466 g
Unit Type of Package 2 S03
Number of Units in Package 2 4
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2 kg
Contractual warranty
Warranty 18 months
