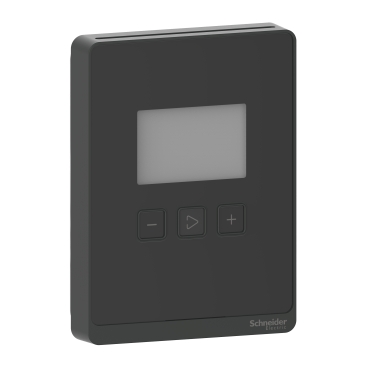

Schneider SLA Series Air Quality Sensors Analog Room CO2 Humidity Temperature Segmented LCD SLABLC2
The SpaceLogic SLA Series of air quality sensors for living space is a flexible multisensor platform for use with BAS controllers designed to accept 4
to 20mA, 0 to 5Vdc or 0 to 10Vdc outputs. Housings are available in Medium
matte white and Optimum faces available in black and white. All housing types
are available with three user interface options: touchscreen, LCD with three buttons and blank. CO2 and temperature sensors are included with all SLA Series
air quality sensors. Models with VOC sensors and relative humidity sensors are
also available.

SLABLC2
SLABLCV2
SLABLCVX
SLABLCX
SLABTC2
SLABTCV2
SLABTCVX
SLABTCX
SLABXC2
SLABXCV2
SLABXCVX
SLABXCX
SLASLC2
SLASLCV2
SLASLCVX
SLASLCX
SLASTC2
SLASTCV2
SLASTCVX
SLASTCX
SLASXC2
SLASXCV2
SLASXCVX
SLASXCX
SLAWLC2
SLAWLCV2
SLAWLCVX
SLAWLCX
SLAWTC2
SLAWTCV2
SLAWTCVX
SLAWTCX
SLAWXC2
SLAWXCV2
SLAWXCVX
SLAWXCX

Specifications

Main
Range SpaceLogic
Product or component type Sensor
Product name SpaceLogic Room Unit
Type of measurement Carbon dioxide (CO2)
Humidity
Temperature
Device application HVAC
Temperature control
Fan speed controller
Product specific application Humidity control
Product certifications CE conforming to EN 61000-6-2
CE conforming to EN 61000-6-3
CE conforming to EN 61326-1
RCM
EAC
ICES-003
CULus
Display size 2 inch
Display type LCD display
Information displayed Temperature
Temperature set point
Menu-driven user interface
Relative humidity
CO2
location Living space
Mounting support Wall-mount
Depth 23.7 mm
Height 85 mm
Width 115 mm
Network frequency 50 Hz
60 Hz
Ambient air temperature for operation 0…50 °C
Standards UL 916
FCC part 15 class B
Colour Black
Sensor type Transmitter
NDIR (non-dispersive infrared)
Thin-film capacitive
[Us] rated supply voltage 24 V AC
20…30 V DC
Device presentation Complete product
Surface finish Glossy
Complementary
Communication network type Wired
Control type + button
– button
Arrow button
Material ABS (acrylonitrile butadiene-styrene)
Function available With temperature sensor
With CO2 sensor
With humidity sensor
Hysteresis 1.5 %
Repeat accuracy +/- 20 ppm
Connections – terminals Screw terminal – 2 cable(s) (AWG 24…AWG 18)
Number of outputs 1 fan
1 configurable
Output type Analog
Output voltage 0…10 V for fan speed
0…5 V for configurable analog output
0…10 V for configurable analog output
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Environment
Humidity setting range 0…100 %
Temperature setting range 10…35 °C
0…50 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 9.67 cm
Package 1 Length 14.0 cm
Package 1 Weight 181.82 g
