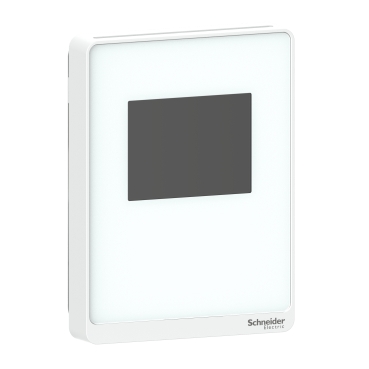

Schneider SLA SpaceLogic Series Temperature Sensor Room Resistive 10K T3 Optimum White Housing SLAWTXX

Schneider SLA SpaceLogic Series Temperature Sensor Room Resistive 10K T3 Optimum White Housing SLAWTXX

Add to wishlist
Category:
Brand:
Share:

Schneider SLA SpaceLogic Series Temperature Sensor Room Resistive 10K T3 Optimum White Housing SLAWTXX

The SpaceLogic SLA Series of wall temperature sensors for rooms is a versatile platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is optimum white. The user interface is assured by a color touchscreen with control and setpoint menu. This air quality sensor include a 10K Type 3 Thermistor element. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.
SLAWLXX
SLAWXXX
SLABTXX
SLABLXX
SLABXXX
SLASTXX
SLASLXX
SLASXXX

Specifications

Main
Product or Component Type Sensor
Type of Measurement Temperature
Device Application HVAC
Temperature control
Fan speed controller
Display size 2.4 inch
Location Living Space
Mounting Support Wall Mount
Depth 0.9 in (23.7 mm)
Height 3.3 in (85 mm)
Width 4.5 in (115 mm)
Network Frequency 50 Hz
60 Hz
Output Type Analog
Standards UL 916
FCC Part 15 class B
Color White
Ambient Air Temperature for Operation 32…122 °F (0…50 °C)
Relative Humidity 0…95 %
Sensor Type Transmitter
Surface Finish Glossy
Product name SpaceLogic Room Unit
Function Available With temperature sensor
Range SpaceLogic
Complementary
Information Displayed Temperature
Temperature set point
Menu-driven user interface
Device presentation Complete product
Communication Network Type Wired
Connections – terminals Screw terminal – 2 AWG 24…AWG 18)
Output voltage 0…10 V fan speed
0…5 V configurable analog output
0…10 V configurable analog output
Number of Outputs 1 fan
1 configurable
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Control type tactile
Material ABS (acrylonitrile butadiene-styrene)
[Us] rated supply voltage 24 V AC 50-60 Hz
20…30 V DC
Display type Colour touchscreen – 240 x 300 pixels
Communication port protocol –
Measurement accuracy Typical +/- 0.2 %
Environment
Temperature setting range 50…95 °F (10…35 °C)
32…122 °F (0…50 °C)
Measurement range 0…50 °C temperature
Product certifications CE conforming to EN 61000-6-2
CE conforming to EN 61000-6-3
CE conforming to EN 61326-1
RCM
EAC
ICES-003
CULus
Ordering and shipping details
Category US1BMS180230
Discount Schedule BMS1
GTIN 3606481911285
Returnability Yes
Country of origin US
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 5.51 in (14 cm)
Package 1 Width 3.70 in (9.4 cm)
Package 1 Length 1.97 in (5 cm)
Package weight(Lbs) 7.8 oz (220 g)
