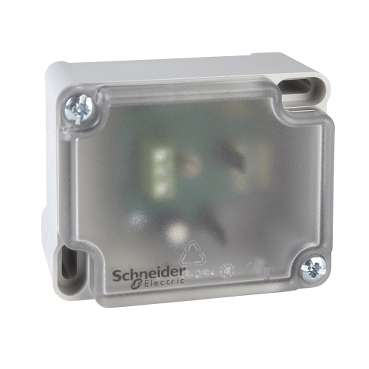

Schneider SLO320 Outdoor Electronic Light Transmitter 006920640

Schneider SLO320 Outdoor Electronic Light Transmitter 006920640
The SLO320 electronic light transmitter converts a lux measurement into an
electric current (4 … 20 mA) or voltage (0 … 10 Vdc) signal. They have two
sensitivity ranges to suit different light levels:
• 0 … 500 lux (for controlling outdoor lighting)
• 0 … 20k lux (for controlling sunshade systems)
The transmitter is delivered as a complete unit, comprising the sensing
element and an amplifier mounted in a housing. The transmitter is intended
for wall mounting. The sensitivity peak is for light at an angle of incidence of
0° to the perpendicular.
The sensor has the same spectrum sensitivity peak as the human eye. The
SLO320 is an electronic light transmitter that converts a lux measurement into
a current signal 4 … 20 mA or an electric signal 0 … 10 Vdc selectable by a
link located on the PCB.

Specifications
