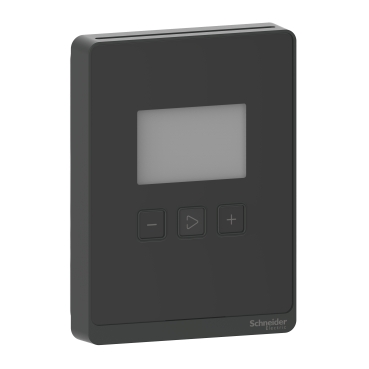

Schneider SLP Series Air Quality Sensors room CO2 humidity temperature segmented LCD BACnet MSTP/Modbus outputs SLPBLC2
The SpaceLogic SLP Series of air quality sensors for living space is a flexible
multisensor platform for use with BAS controllers designed to accept BACnet or
Modbus outputs. Housings are available in Medium matte white and Optimum
faces available in black and white. All housing types are available with three
user interface options: touchscreen, LCD with three buttons and blank. CO2
and temperature sensors are included with all SLP Series air quality sensors.
Models with VOC sensors and relative humidity sensors are also available

SLPBLC2
SLPBLCV2
SLPBLCVX
SLPBLCX
SLPBTC2
SLPBTCV2
SLPBTCVX
SLPBTCX
SLPBXC2
SLPBXCV2
SLPBXCVX
SLPBXCX
SLPSLC2
SLPSLCV2
SLPSLCVX
SLXRHS1N
SLXRHS2N
SLXRHS2X
SLPSLCX
SLPSTC2
SLPSTCV2
SLPSTCVX
SLPSTCX
SLPSXC2
SLPSXCV2
SLPSXCVX
SLPSXCX
SLPWLC2
SLPWLCV2
SLPWLCVX
SLPWLCX
SLPWTC2
SLPWTCV2
SLPWTCVX
SLPWTCX
SLPWXC2
SLPWXCV2
SLPWXCVX
SLPWXCX

Specifications

Main
Range SpaceLogic
Product or Component Type Sensor
Product name SpaceLogic Room Unit
Type of Measurement Carbon Dioxide (CO2)
Humidity
Temperature
Device Application HVAC
Temperature control
Fan speed controller
Product Specific Application Humidity control
Product certifications CE conforming to EN 61000-6-2
CE conforming to EN 61000-6-3
CE conforming to EN 61326-1
RCM
EAC
ICES-003
CULus
Communication Port Protocol BACnet
Modbus
Display size 2 inch
Display Type LCD display
Information Displayed Temperature
Temperature set point
Menu-driven user interface
Relative humidity
CO2
Location Living Space
Mounting Support Wall Mount
Depth 0.9 in (23.7 mm)
Height 3.3 in (85 mm)
Width 4.5 in (115 mm)
Network Frequency 50 Hz
60 Hz
Ambient air temperature for operation 32…122 °F (0…50 °C)
Standards UL 916
FCC Part 15 class B
Color Black
Sensor Type Transmitter
NDIR (non-dispersive infrared)
Thin-film capacitive
[Us] Rated Supply Voltage 24 V AC
20…30 V DC
Device presentation Complete product
Surface Finish Glossy
Complementary
Control type + button
– button
Arrow button
Material ABS (acrylonitrile butadiene-styrene)
Function Available With temperature sensor
With CO2 sensor
With humidity sensor
Hysteresis 1.5 %
Repeat accuracy +/- 20 ppm
Connections – terminals Screw terminal – 2 AWG 24…AWG 18)
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Environment
Humidity setting range 0…100 %
Temperature setting range 50…95 °F (10…35 °C)
32…122 °F (0…50 °C)
Ordering and shipping details
Category US1BMS180230
Discount Schedule BMS1
GTIN 3606481900913
Returnability Yes
Country of origin US
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 1.89 in (4.8 cm)
Package 1 Width 3.81 in (9.67 cm)
Package 1 Length 5.51 in (14.0 cm)
Package weight(Lbs) 6.41 oz (181.82 g)
