Schneider STP120 Pipe Temperature Sensor 70 mm (2.76 in.) TAC Vista TAC Xenta 5123158010

Schneider STP120 Pipe Temperature Sensor 70 mm (2.76 in.) TAC Vista TAC Xenta 5123158010

Add to wishlist
Category:
Brand:
Share:

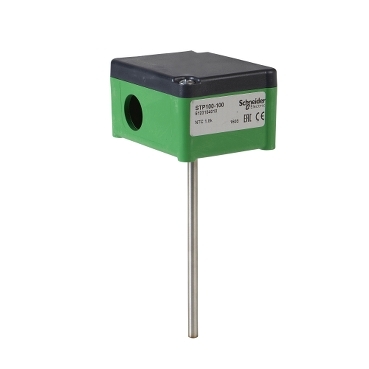

Schneider STP120 Pipe Temperature Sensor 70 mm (2.76 in.) TAC Vista TAC Xenta 5123158010
The STP120, 220, 620 temperature sensors are intended for immersion
mounting in pipe systems without requiring a pocket/well. This product is for
use in fast time constant systems such as district heating applications. The
STP housing is equipped with a Ø 20 mm (0.79 in.) cable fitting. A 20 mm
(0.79 in.) cable gland is supplied.
Accuracy: See Appendix A, tables A, B, F
Calibration certificates: See Appendix B
Thermistor table: See Appendix C, table A
5123160010 STP120-120
5123162010 STP120-220
5123230000 STP220-70
5123232000 STP220-120
5123234000 STP220-220
5126090000 STP620

Specifications

Main
Range of product STP120
Product or component type Sensor
Type of measurement Temperature
Device application Pipe immersion
IP degree of protection IP65
location Plant room
Mounting support Pipe
Depth 45 mm
Height 85 mm
Width 65 mm
Output type Resistive output
Product compatibility Vista
Ambient air temperature for storage -40…100 °C
Colour Black and green
Ambient air temperature for operation -40…120 °C
Sensor type 1.8 kOhm NTC temperature
Targeted region Asia Pacific.
Europe
Complementary
Type of installation Immersion
Material PA (polyamide): connection box
Stainless steel: insert pipe
Time constant 1500 ms
Connections – terminals Wire (AWG 24…AWG 18)
Length 70 mm for side sensor
Number of cables 1 <0.02 m
Measurement accuracy 0…25 °C +/- 0.3 °C
Environment
Temperature probe type NTC 1800 Ohm at 25 °C
Product certifications CE
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 20.400 cm
Package 1 Width 9.400 cm
Package 1 Length 7.200 cm
Package 1 Weight 220.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 40
Package 2 Height 40.000 cm
Package 2 Width 47.000 cm
Package 2 Length 38.000 cm
Package 2 Weight 9.808 g
Contractual warranty
Warranty 24 months
