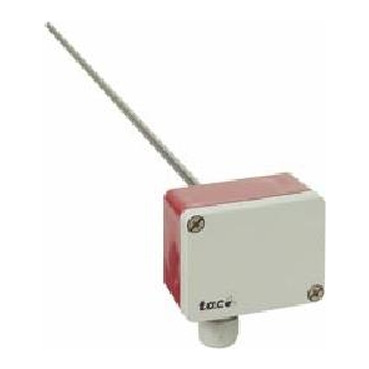

Schneider STP100-50 Pipe Temperature Sensor 50 mm (1.97 in.) TAC Vista TAC Xenta 5123102010
These sensors are designed for immersion mounting in pipe systems with a
separate pocket/well. The pocket/well is sealed, making it easy to replace the
sensor if necessary. The STP housing is equipped with a Ø 20 mm (0.79 in.)
cable fitting. A 20 mm (0.79 in.) cable gland is supplied. The pocket/well must
be ordered separately (see pages 21 and 85 for ordering information).
Accuracy: See Appendix A, tables A, B, C
Calibration certificates: See Appendix B
Thermistor table: See Appendix C, table A
5123104010 STP100-100
5123106010 STP100-150
5123108010 STP100-200
5123110010 STP100-250
5123112010 STP100-300
5123114010 STP100-400
5123130010 STP200-50
5123132010 STP200-100
5123134010 STP200-150
5123136010 STP200-200
5123138010 STP200-250
5123140010 STP200-300
5123142010 STP200-400
5126010000 STP600D
