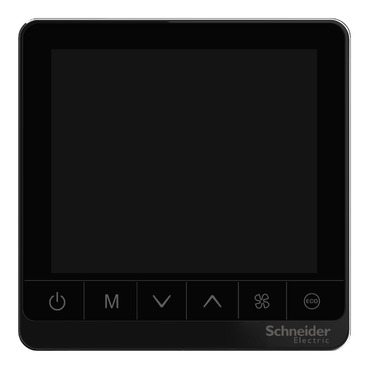

Schneider TC900 Thermostat Spacelogic fan coil on/off standalone touchscreen 2P 3 fan 240V black TC907-3A2LB

Schneider TC900 Thermostat Spacelogic fan coil on/off standalone touchscreen 2P 3 fan 240V black TC907-3A2LB

Add to wishlist
Category:
Brand:
Share:

Schneider TC900 Thermostat Spacelogic fan coil on/off standalone touchscreen 2P 3 fan 240V black TC907-3A2LB
The TC900 Series fan coil thermostats are optimized for office building, hotel,
hospital and residential applications.
The TC900 Series can be used for 2-pipe or 4-pipe applications.
Available in three housing finishes: optimum (black glass display with capacitive buttons on a black or white base) or medium (white glass display with
mechanical buttons on a white base).
The TC900 Series is both easy to operate and install. The devices feature
microprocessor-based control and large backlit LCD screens which display
operation status (cooling, heating, and ventilation), fan speed, room temperature and set-point.

TC907-3A2LB
TC907-3A2P-24B
TC907-3A4LAB
TC907-3A4LMAB
TC907-3A4DLSAB
TC907-3A4DLMSAB
TC907-4FMSAB
TC907-3A4DPSAB
TC907-3A4DPMSAB
TC907-3A4DPMSA-24B
TC907-3A2P-24
TC907-3A2L
TC907-4FMSA
TC907-3A4LMA
TC907-3A4LA
TC907-3A4DPSA
TC907-3A4DPMSA-24
TC907-3A4DPMSA
TC907-3A4DLSA
TC907-3A4DLMSA

Specifications

Main
Range SpaceLogic
Product name SpaceLogic TC900
Device short name TC907
Product or component type Thermostat
Sensor type 100 kOhm NTC thermistor
Complementary
Device application Fan
Product specific application 2-pipe system
[Us] rated supply voltage 90…240 V AC 50/60 Hz
Network frequency 50 Hz
60 Hz
Max power consumption in W 1 W
Communication port protocol –
Function available Setpoint adjustment
Fan control
Mode selection
Economiser
Disable functions
Alarm
Low temperature protection
Colour Black
Housing colour Black
Control type touch screen, for thermostat
2 positions ON-OFF button, for actuator
3 speed control relay, for fan
Display type Backlit LCD screen
Information displayed Ambient room temperature 0 to 50 °C
Time
Day
Temperature alarm
Communication status ok
Current program
Measurement accuracy Temperature: +/- 1 °C,
Output voltage 240 V AC 5 A for relay
240 V AC 2 A for load
Connections – terminals Screw terminal (back) – 2 cable(s) 1.5 mm²
Screw terminal (back) – 1 cable(s) 2.5 mm²
Width 86 mm
Depth 40 mm
Height 86 mm
Market segment Small buildings
Hotel
Healthcare
Residential
Environment
Temperature setting range 5…35 °C
Relative humidity 5…95 %
Ambient air temperature for operation 0…50 °C
Standards EN/IEC 60730-1
EN/IEC 60730-2-9
Product certifications CE
IP degree of protection IP20
Pollution degree 2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 10.5 cm
Package 1 Length 12.3 cm
Package 1 Weight 0.22 kg
