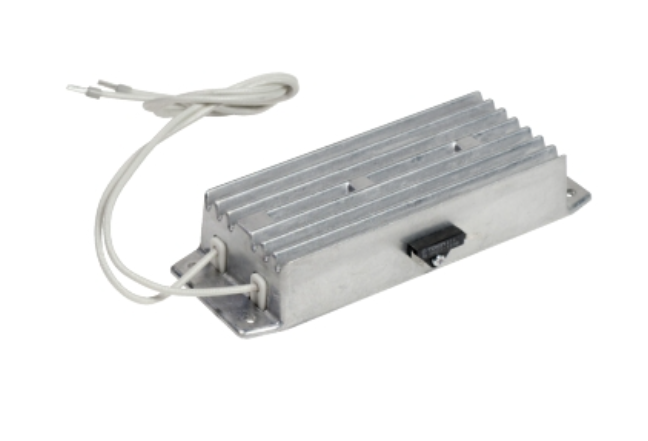

Schneider VW3A7723 braking resistor Altivar 100Ohm 28W IP00

Schneider VW3A7723 braking resistor Altivar 100Ohm 28W IP00

Add to wishlist
Category:
Brand:
Share:

Schneider VW3A7723 braking resistor Altivar 100Ohm 28W IP00,
This braking resistoris an option for variable speed drives of Altivar ranges.
moreover It has an Ohmic value of 100Ohms at 20°C and its protection index is IP00.
however It is compatible with Altivar 12, Altivar 312, Altivar 312 solar, easy Altivar 310 and easy Altivar 310L ranges.
furthermore It is compatible with Altivar 312, Altivar 320 and Altivar easy 310. the power available is 28W at 50°c and 32W at 40°c.
in conclusion It weighs 0.605kg and its dimensions are, 60mm wide, 170mm high, 30mm deep.

Specifications

Main
Range of product Altivar
Range compatibility Altivar 12
*Altivar 312
-Altivar 312 Solar
Easy Altivar 310
Easy Altivar 310L
Ohmic value 100 Ohm
Complementary
Average power available 28 W at 50 °C
32 W at 40 °C
Width 60 mm
Height 170 mm
Depth 30 mm
Net weight 0.605 kg
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 17.500 cm
Package 1 Length 23.500 cm
Package 1 Weight 667.000 g
Unit Type of Package 2 S04
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 9.323 kg
Unit Type of Package 3 P06
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 40.500 kg
Contractual warranty
Warranty (in months) 18
