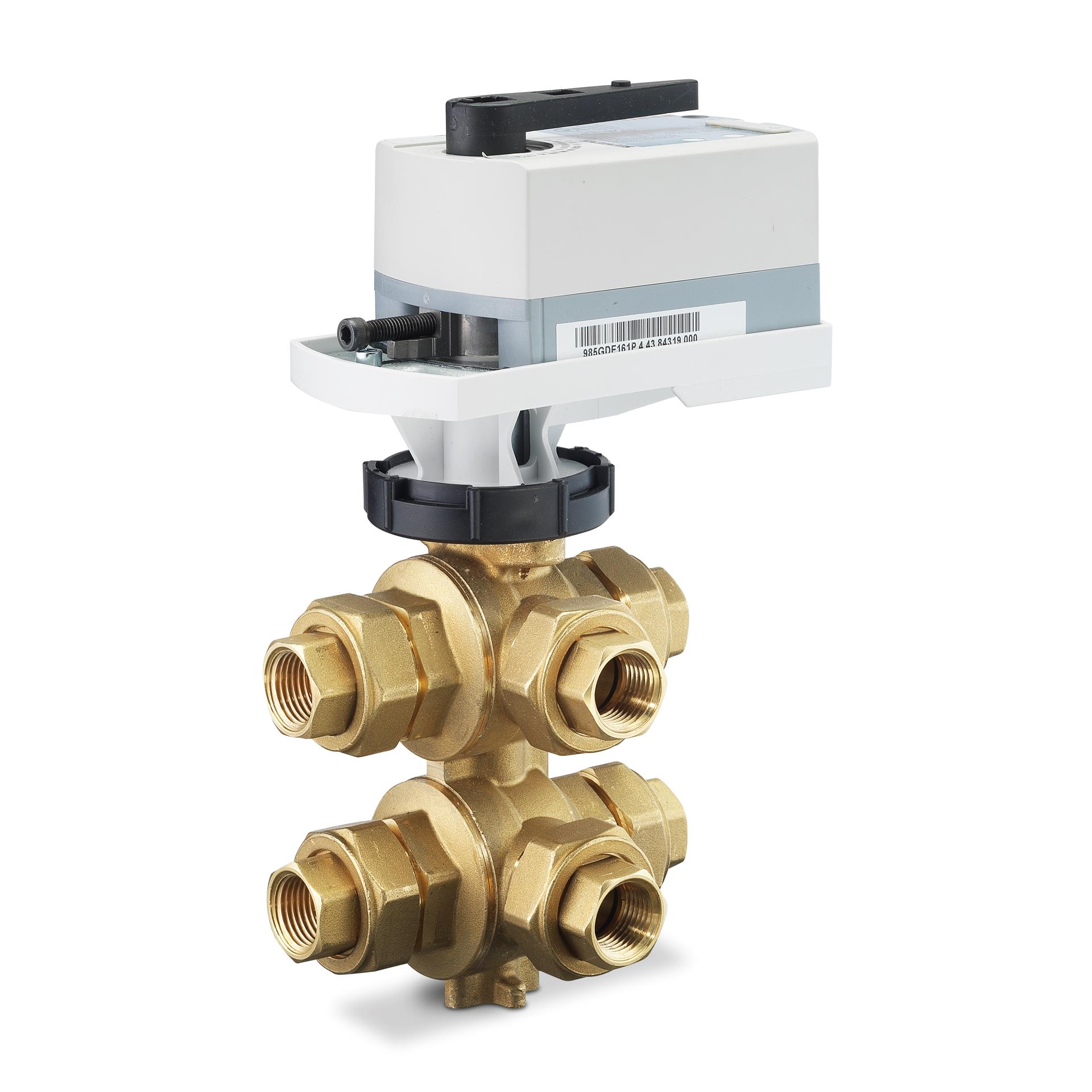

Siemens 171C-10600-0.3-0.3 SixWay Ball Valve Assemblies

Siemens 171C-10600-0.3-0.3 SixWay Ball Valve Assemblies,
This 1/2 inch 599 Series 6-way ball valve,
with a 0-10 Vdc control fail-in-place actuator assembly,
and is used to control hot or chilled water and up to 50% Glycol solution in chilled/heated beams,
and other four pipe systems using a single valve and actuator.
58 psi close-off with 0% leakage. Source A = 0.3 Cv and Source B = 0.3 Cv,
linear flow characteristic and chrome-plated brass ball and stainless steel stem and Cv washers.
There is a handle for manual operation of the valve in the event of power failure.
171C-10600-0.3-0.3
171C-10600-0.3-0.5
171C-10600-0.3-0.8
171C-10600-0.3-1.2
171C-10600-0.3-1.5
171C-10600-0.3-1.9
171C-10600-0.5-0.3
171C-10600-0.5-0.5
171C-10600-0.5-0.8
171C-10600-0.5-1.2
171C-10600-0.5-1.5
171C-10600-0.5-1.9
171C-10600-0.8-0.3
171C-10600-0.8-0.5
171C-10600-0.8-0.8
171C-10600-0.8-1.2
171C-10600-0.8-1.5
171C-10600-0.8-1.9
171C-10600-1.2-0.3
171C-10600-1.2-0.5
171C-10600-1.2-0.8
171C-10600-1.2-1.2
171C-10600-1.2-1.5
171C-10600-1.2-1.9
171C-10600-1.5-0.3
171C-10600-1.5-0.5
171C-10600-1.5-0.8
171C-10600-1.5-1.2
171C-10600-1.5-1.5
171C-10600-1.5-1.9
171C-10600-1.9-0.3
171C-10600-1.9-0.5
171C-10600-1.9-0.8
171C-10600-1.9-1.2
171C-10600-1.9-1.5
171C-10600-1.9-1.9
